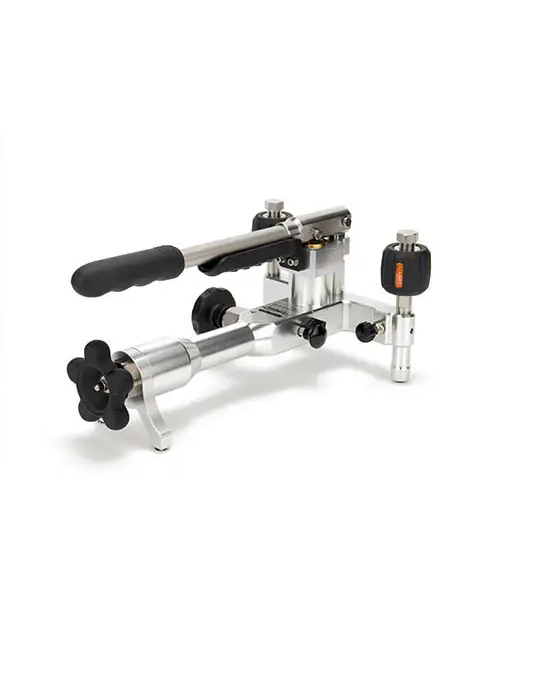

Additel ADT917-M-SET Pneumatic Pressure Test Pump (1,000 psi, M20X1.5 (F) - Air)

Media: Air.

Generated Pressure Range: 95% vacuum to 1,000 psi (70 bar) positive pressure

Adjustment Resolution: 10 Pa (0.1 mbar).

Material: Ram/adapters: SS

Body: SS, aluminum

Seals: Buna-N, PTFE, Copper Alloy

Piston volume: 27 ml (1.6 in³)

Connection:

Hand-tight connectors for both test gauge and reference gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female

Pressure port type: M20X1.5 female

Dimensions:

Height: 5.5" (140 mm)

Base: 12.4" (315 mm) x 7.8" (198 mm)

Weight: 5.7 lb (2.6 kg).

Pump and carrying case included
