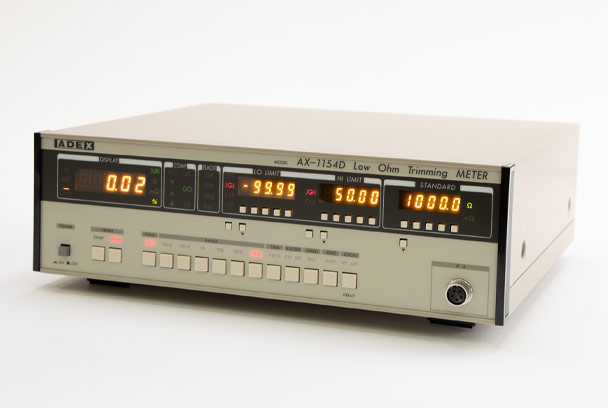

ADEX AX-1154D Low-ohm trimming meter (0Ω ~ 1.5000kΩ)

Measuring range and Accuracy (at 23*C± 5*C)

Range     Measuring range         Resolution   Measuring current

10mΩ 0.000mΩ～15.000mΩ        1μΩ                       1A

100mΩ 0.00mΩ～150.00mΩ    10μΩ                          1A

1Ω         0.0000Ω～ 1.5000Ω 100μΩ                   100mA

10Ω         0.000Ω～ 15.000Ω        1mΩ            100mA

100Ω 0.00Ω～ 150.00Ω         10mΩ                     10mA

1kΩ    0.0000kΩ～ 1.5000kΩ 100mΩ                      1mA

％         0.5mΩ～1kΩ/ ±50.0％    0.01％ [50nΩ]            Refer to the above

                                      ±99.99％

Measuring accuracy: within

±(0.01％rdg＋1μΩ)

±3digit [Average]

±4digit [Slow]

±5digit [Fast]

Open-circuit voltage of measuring terminal: about 8V

Measuring method: 4-terminal measurement (contact check available)

Sampling time:

[Free running mode] 2～10 times per second

[External start mode] about 16.5msec./410msec.

[Trimming mode] 1msec.～100msec.

Setting range for comparator:

[Absolute measurements] Both HI and LO 15000

[Measurement deviation (%)] Both HI and LO －99.99％～＋50.00％

Indication of comparator's judgment result: LO/GO/HI LED display and buzzer

Control signal:

Input: START (Remote start)

TRIM (Remote triming start)

Output: LO/GO/HI (Judgment output)

SPEED (Trimming speed mode)/T-NG (Trimming -NG)/END (Trimming-end)

CE (Contact-error)/EOC (End of comparison)

Operation condition: [Temp.] ＋5℃～＋40℃ [Humidity] less than 85%

Power supply: AC100V～240V selectable, 50/60Hz, about 60VA

Outer dimension: about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 4.3kg
