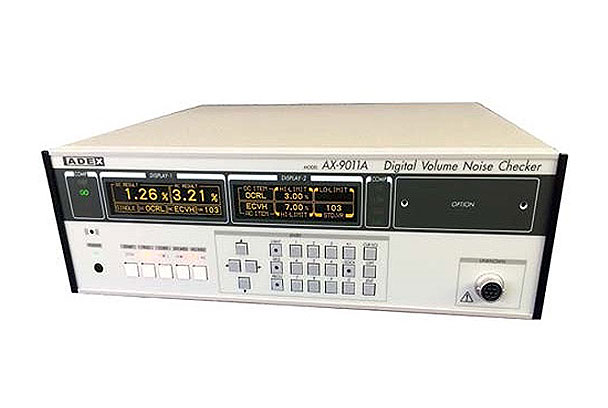

ADEX AX-9011A Digital variable resistor noise checker (10Ω - 10MΩ)

Measuring range and accuracy (at 23*C±5*C)

TR measuring range and accuracy

Range        Measuring range         Applied voltage

100Ω        10Ω～ 99Ω(100Ω)                    1V

1kΩ                100Ω～ 990Ω(1kΩ)                 5V

10kΩ              1kΩ～ 9.9kΩ(10kΩ)           5V

100kΩ         10kΩ～ 99kΩ(100kΩ) 5V

1MΩ         100kΩ～990kΩ(1MΩ) 5V

10MΩ         1MΩ～ 10MΩ                 5V

Accuracy: Within ±0.05％rdg±2digit

* Settable integration time,1msec to 99msec. 50msec is set at factory.

Noise measuring range and accuracy

Range: 100Ω/1kΩ/10kΩ/100kΩ/1MΩ/10MΩ

Measuring range To STANDARD value

DC+0.00%～25.00% AC+0.00%～9.99%

Measuring accuracy : Within ±0.05％rdg±5digit

*Settable noise detecting time,0.5sec to 20.0sec 5.0sec is set at factory

Measurement end signal(EOC): 0msec.～99msec.［continuous output at 0 msec]

Measuring method: 4 terminal measuring method

Limit settable range: TR：±25.0％ DC OCR&CRV：25.0％ AC CRV&ECV：9.99％

Operation condition: Temp.: +5℃～+40℃ Humidity:less than 85%

Others: Zero/Full scale calibration function by panel operation

Power supply: AC100V～240V,auto selectable type,50/60Hz about 30VA

Outer dimension: about 333（W）×99（H）×300（D）mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 4.0 kg
