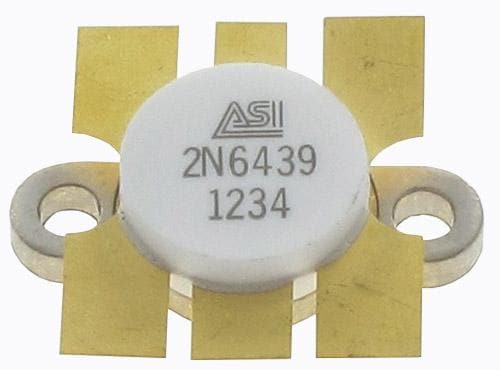

Advanced Semiconductor, Inc. 2N6439 RF 바이폴라 파워 RF 트랜지스터

Technology: Si

Unit Weight: 23.722 g

Mounting Style: Screw Mount

Transistor Type: Bipolar Power

Operating Frequency: 400 MHz

Transistor Polarity: NPN

Pd - Power Dissipation: 146 W

Gain Bandwidth Product fT: 400 MHz

Emitter- Base Voltage VEBO: 4 V

Maximum Operating Temperature: + 200 C

Minimum Operating Temperature: - 65 C

DC Collector/Base Gain hfe Min: 10

Collector- Emitter Voltage VCEO Max: 33 V
