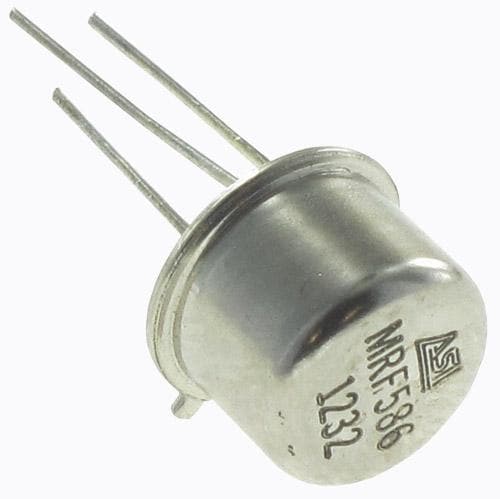

Advanced Semiconductor, Inc. MRF586 RF 바이폴라 소형 신호 RF 트랜지스터

Technology: Si

Unit Weight: 453.600 mg

Mounting Style: Through Hole

Transistor Type: Bipolar

Operating Frequency: 500 MHz

Transistor Polarity: NPN

Pd - Power Dissipation: 2.5 W

Emitter- Base Voltage VEBO: 2.5 V

Continuous Collector Current: 200 mA

Maximum Operating Temperature: + 200 C

Minimum Operating Temperature: - 65 C

DC Collector/Base Gain hfe Min: 50

Collector- Emitter Voltage VCEO Max: 17 V
