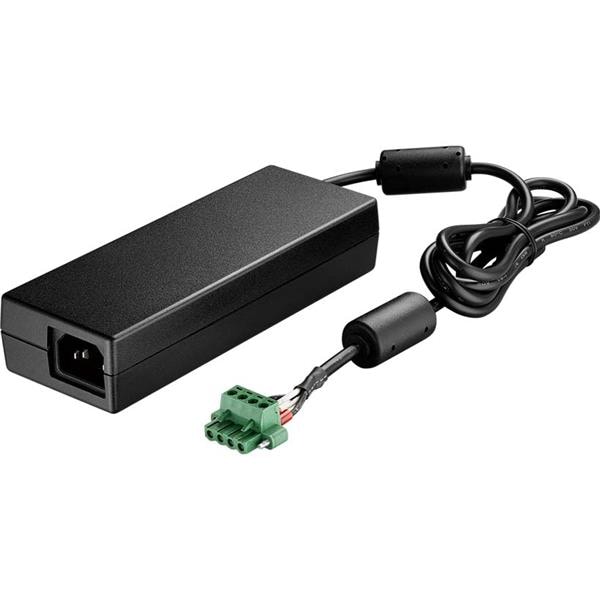

Advantech 96PSA-A150W19P4-4 데스크탑 AC 어댑터 ADP A/D 100-240V 150W 19V C14 터미널 블록 4P

Width: 75.6 mm

Height: 25.4 mm

Length: 151.3 mm

Region: Universal

Efficiency: 88 %

Input Type: AC

Output Power: 150 W

AC Inlet Type: IEC 320-C14

Input Voltage: 100 VAC to 240 VAC

Connector Type: Terminal Block

Mounting Style: Desktop

Load Regulation: Not Regulated

Number of Outputs: 1 Output

DC Output Connector: 4 Pin Terminal Block

DC Output Cord Length: 1500 mm

Output Current-Channel 1: 7.89 A

Output Voltage-Channel 1: 19 V

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: 0 C
