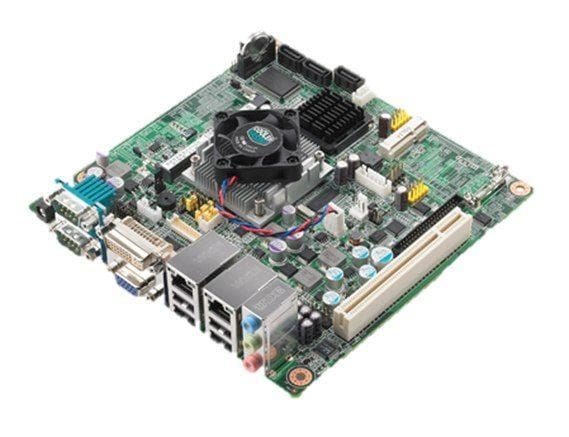

Advantech AIMB-213D-S6A1E 싱글 보드 컴퓨터 회로 기판, ATOM D525 1.8G 미니 ITX w/VGA, LVDS, 2GbE, 6COM

Core: Atom D525

Chipsets: ICH8M

Frequency: 1.8 GHz

Dimensions: 170 mm x 170 mm

Form Factor: Mini-ITX

Memory Type: DDR3

Cache Memory: 1 MB

Installed RAM: 0 GB

Processor Type: Atom D525

Number of Cores: 2 Core

Processor Brand: Intel

Processor Series: Intel Atom D525

Description/Function: Intel Atom D525 Mini-ITX with CRT/DVI/LVDS, 6 COM, and dual LAN

Maximum RAM Capacity: 2 GB

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
