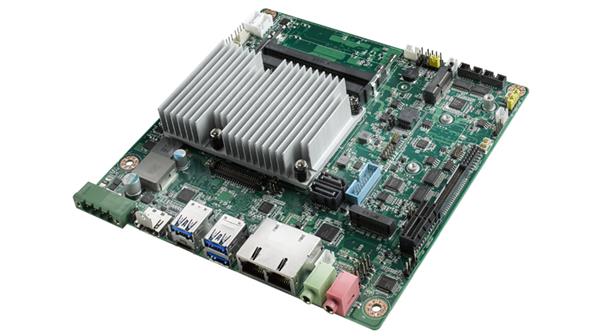

Advantech AIMB-233G2-U7A1E 산업용 마더보드 IntelCorei7/i5/i3/Celeron BGA 1528 Mini-ITX Type C Alt./HDMI/LVDS(eDP) 포함, 6 COM, 듀얼 LAN, miniPCIe, M.2, PCIex1, DDR4, DC 입력

Storage: 2 x SATA

Chipsets: Cannon Lake PCH-LP / ME12

Form Factor: Mini-ITX

Memory Type: DDR4

Display Port: 1 x HDMI

Expansion Slot: PCIe Gen3

Processor Type: Celeron, Core i3/i5/i7

Processor Brand: Intel

Maximum Frequency: 2.4 GHz

Power Consumption: 15 W

Number of LAN Ports: 2 Port

Number of USB Ports: 4 x USB 3.1

Maximum RAM Capacity: 64 GB

Supply Voltage - Max: 24 VDC

Supply Voltage - Min: 12 VDC

Number of Memory Channels: 2 Channel

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
