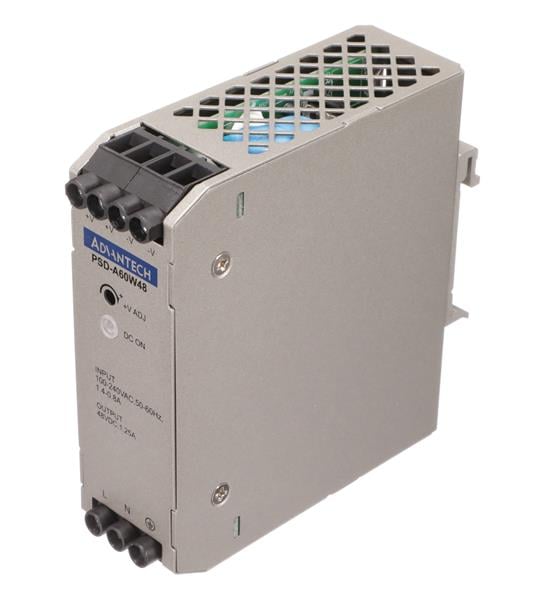

Advantech PSD-A60W48 스위칭 전원 공급 장치 DIN 레일 A/D 100-240V 60W 48V

Width: 32 mm (1.26 in)

Height: 100 mm (3.937 in)

Length: 90.2 mm (3.551 in)

Industry: Industrial

Input Type: 1-Phase / Single Phase

Unit Weight: 305 g

Output Power: 60 W

Input Voltage: 85 VAC to 264 VAC, 110 VDC to 375 VDC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 1.25 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
