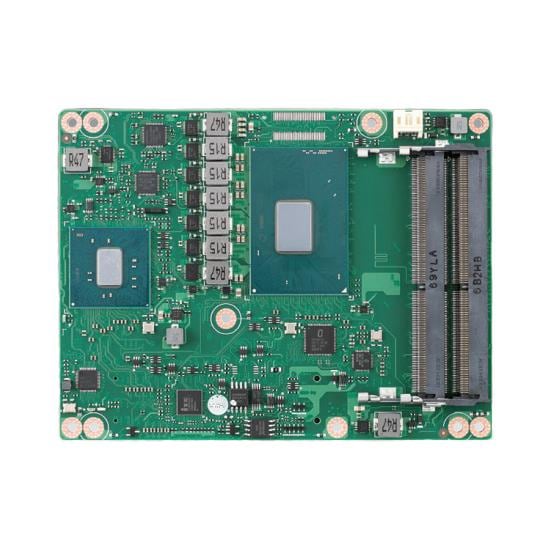

Advantech SOM-5898E4LX-U2A1 시스템 온 모듈 - SOM E3-1505L v6, 4C, 2.2GHz 25W, -40 ~ +85

Chipsets: CM238

Frequency: 2.2 GHz

Dimensions: 125 mm x 95 mm

Form Factor: COM Express Basic Module

Memory Type: DDR4-2400

Cache Memory: 8 MB

Interface Type: 2-Wire, Audio, DDI, Ethernet, GPIO, I2C, LPC, PCIe, SATA III, SMBus, SPI, TPM, USB 2.0, USB 3.0, VGA

Processor Type: Xeon E3-1505LV6

Processor Brand: Intel

Processor Series: E3-1505LV6

Maximum RAM Capacity: 32 GB

Operating Supply Voltage: 8.5 V to 20 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
