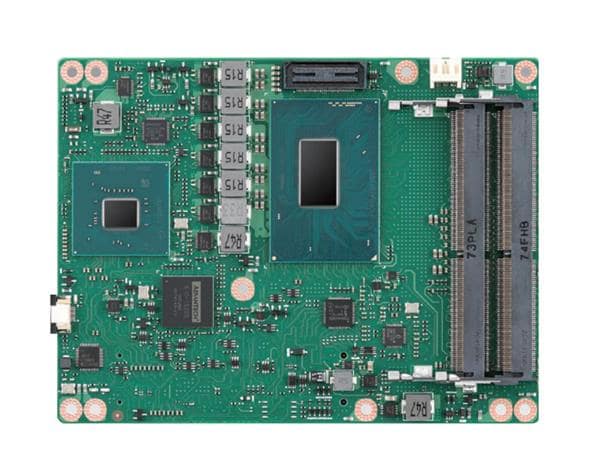

Advantech SOM-5899C7QX-U6A1 시스템 온 모듈 - SOM i7-8850H, 6코어, 2.6GHz, 45W, -40 ~ +85도씨

Chipsets: QM370

Frequency: 2.6 GHz

Dimensions: 125 mm x 95 mm

Form Factor: COM Express Basic Type 6

Memory Type: DDR4

Unit Weight: 418 g

Cache Memory: 9 MB

Interface Type: 2-Wire, Audio, CAN, DDI, Ethernet, GPIO, I2C, LPC, PCIe, SATA III, SMBus, SPI, TPM, USB 2.0, USB 3.0, VGA

Processor Type: Core i7-8850H

Processor Brand: Intel

Processor Series: i7-8850H

Maximum RAM Capacity: 48 GB

Operating Supply Voltage: 8.5 V to 20 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
