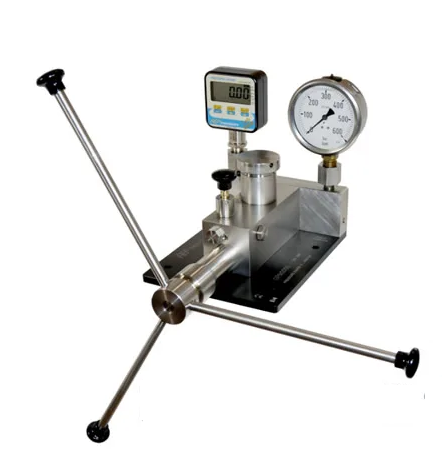

GPM2000 regulating range from 0 to 2000 bar
Operation with mineral oil
Built-in tank of 33 cc with gasket for the hermetic closure during transport
Ball valve for rapid discharge pressure that close and open the hydraulic circuit
Preload manual pump used for rapid filling of the circuit before the pressure regulation
Rotating couplings with by O-rings and / or steel cone sealed G ½ - female thread
Stainless steel structure with aluminium support for mounting on the supporting plane
Weight ∼14.6 kg only generator, Weight ∼16.7 kg with travelling case
Caps for sealing of the hydraulic circuit during transport
ABS travelling case, dimensions 465 x 370 x 175 mm
Working temperature 0 … 40 °C
CE compliance - PED directive 97/23/CE (PS>1000 bar; A module, pressure accessory)
