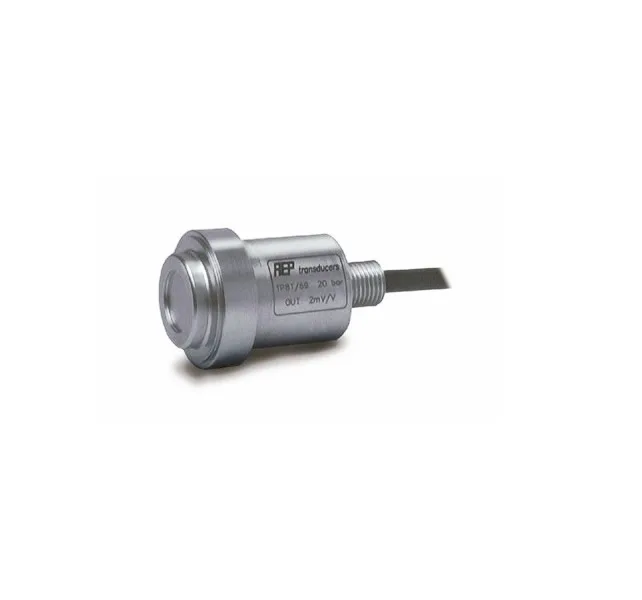

AEP Transducers TP8 압력 센서 (10 / 20 bar)

Relative Pressure (R) (Zero At Atmospheric Pressure) : 10 bar 20 bar

Absolute Pressure (A) (Zero At Pressure To Absolute Vacuum):  50 - 100 - 250 - 350 - 500 -700 - 1000 bar

 Linearity And Hysteresis : ≤ ± 0.50 %

Temperature Effect (1°C):

a) on zero: ≤ ± 0.015%

b) on sensitivity: ≤ ± 0.015%

Nominal Sensitivity : 1mV/V 2mV/V

Calibration Tolerance : ≤ ± 0.1%

Nominal Power Supply: 1-15V

Max. Power Supply: 18V

Input Resistance: 420 Ω typical

Output Resistance: 350 Ω typical

Insulation Resistance: >2 GΩ

Zero Balance: ≤ ±0.5%

Response Frequency: from 15 to 87 kHz

Limit Mechanical Values Referred To Nominal Pressure::

a) service pressure: 100%

b) max. permissible pressure: 150%

c) breaking pressure: >300%

d) highly dynamic pressure: 75%

Reference Temperature: +23°C

Working Temperature Range: -10/+150°C

Storage Temperature Range: -20/+150°C

Process Coupling : FLANGE

Protection Class (En 60529): IP65

Sensor Execution: INOX 17-4 PH

Electrical Connection: 3m Silicon cable
