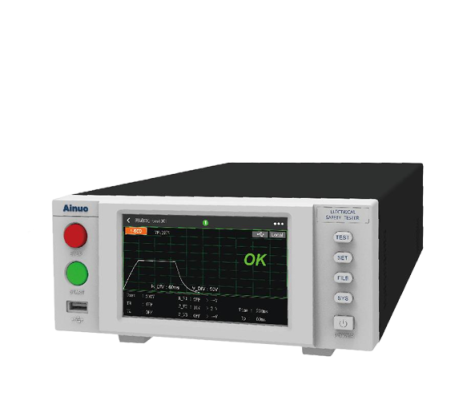

Ainuo ANBTS7202(F) Large Capacity Pulse Lithium Battery Cell Short Circuit Tester (100nF~30,000nF)

Functional configuration: Pulse short circuit

Pulse short circuit test

Output voltage: Range: (50~1000)VDC, Resolution 1V, Error ±(1% × setting value + 5V)

Test time: Range: 50ms~3000ms; Resolution: 1ms; Error: ±(0.5% setting value +2ms)

Judgment parameters: Rise fall V1 (0–100%), hold fall V2 (0–100%), discharge fall V3 (0–100%), resolution 0.1V.

Cell static capacity: 100nF~30,000nF

Other specifications

Power supply: AC220V±10%, 47–63Hz.

Display operation: LCD, 5 inch color display, touch screen.

Output interface: RS232C, LAN, PLC USB (data storage via USB flash drive).

Dimensions (W×H×D mm): 213×88×360.
