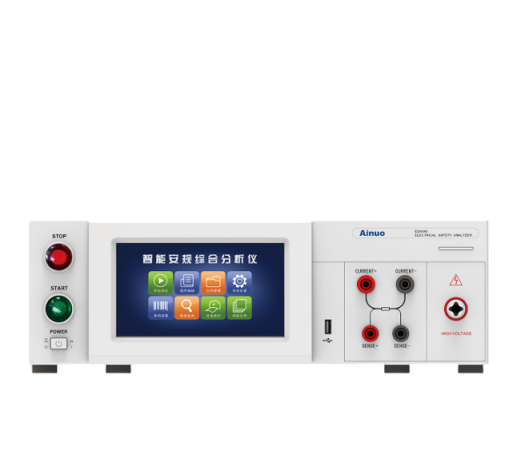

Ainuo ANBTS7436H(F) Lithium Battery Intelligent Safety Regulation Analyzer (ACW/DCW/IR)

AC withstand voltage (ACW): 5kVac/100mA

DC withstand voltage (DCW): 6kVdc/20mA

Insulation resistance (lR): 6kVdc/100GΩ

Ground bond resistance(GB): None

DC ground bond resistance (DCGB): Optional 60Adc/600mΩ DC grounding card

Capacitance test (C): Optional: 10nF-300nF capacitance measurement

Parallel function: Optional: Parallel functions including grounding, insulation withstand voltage

Multi-channel switching: Optional multi-channel high voltage and multi-channel grounding scanning card:

Operation interface: when selecting the DC ground bond card at the same time, the height needs to be increased by 1U; Android system, 7-inch touch screen, and RS232\LAN\WIFI\PLC\USB interfaces

Dimensions (WxHxD mm): 426x132x520
