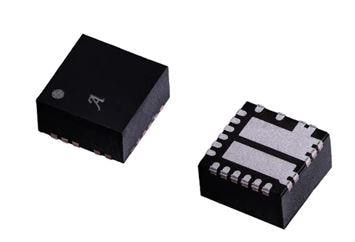

Allegro MicroSystems APM81803KNBJSR 스위칭 전압 조절기 40V, 3A 동기 벅 레귤레이터 모듈

Width: 4 mm

Height: 2.1 mm

Length: 4 mm

Shutdown: Shutdown

Topology: Buck

Input Voltage: 3.5 V to 36 V

Mounting Style: SMD/SMT

Output Current: 3 A

Output Voltage: 800 mV to 24 V

Load Regulation: Regulated

Number of Outputs: 1 Output

Quiescent Current: 6 uA

Moisture Sensitive: Yes

Input Voltage - Max: 36 V

Input Voltage - Min: 3.5 V

Switching Frequency: 250 kHz to 2.4 MHz

Supply Voltage - Min: 3.5 V

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
