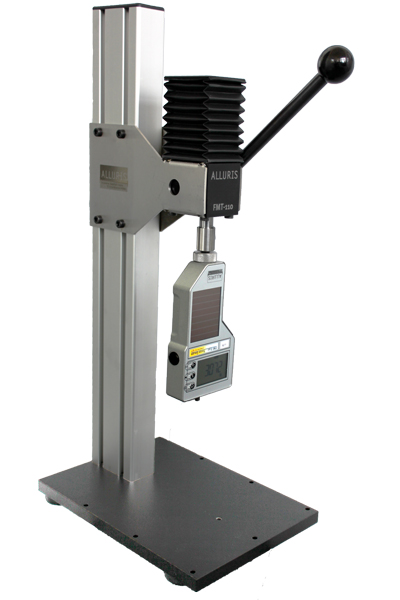

Alluris FMT-110.01K1 Vertical Test Stand with Hand Lever (1000N; 250mm)

Maximum Force (N) : 1000

Stroke( mm) : 50

Column length (mm) : 550

Application (Push) :

Drive (Type) :  Manually

Space for test object:

Width (mm) : Variable | Table top 200mm

Depth (mm) : 118.5

Height (mm):  0 ... 200

Mounting:

Force Gauge : M10 connection with counter nut in force axis for FMI-B and FMI-S

Base plate : Standard M6 tapped hole in table top | Mounting holes for T-slot plate or special tool

Dimensions LxWxH (mm): 280 x 200 x 925

Weight (kg): 10.5

Datasheet
