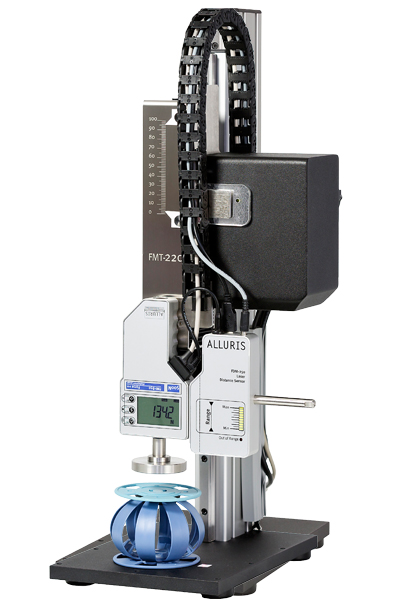

Alluris FMT-221.MK2 Motor option for Vertical Test Stands (2500N)

Maximum Force: 2500N

Speed range: 1–600 mm/min (resolution ±1 mm/min)

Positioning accuracy: ±0.2 mm

Repeatability: ±0.5 mm

Included: universal power supply 100–240 VDC (50/60 Hz), 1 mains cable with EU plug, 2 m USB cable, and assembly instructions

Drive unit with 2-phase stepper motor, integrated stepper motor control, connection cable for Alluris force gauges with digital I/O’s for retrofitting (replacing a handwheel) of the manual test stand with spindle lifting gear

Parameterization of driving profiles with FMI_Analyze Pro+
