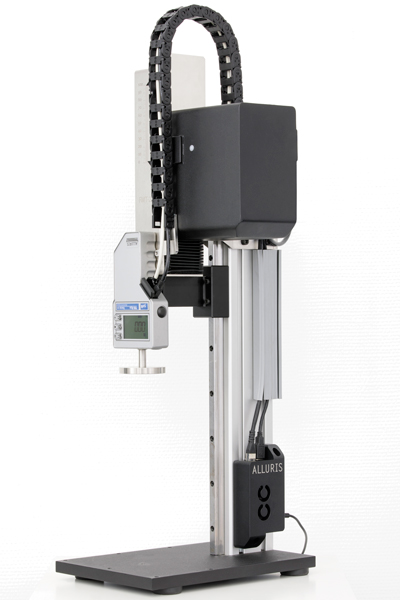

Alluris FMT-230.01K2 Motorized Vertical Test Bench (2500N; 600mm)

Force (max.) (N ) : 2500

Speed (max.) (mm) : 120

Length/Stroke (max.)( mm ) : 600

Application : Push + Pull

Drive:

Type:  motor drive

Speed (mm/min) : 5 ... 600

Transmission : Spindle lifting gear

Motor : Stepper Motor and Close Loop Motor Driver

Positioning accuracy (mm) : 0.5

Space for test object:

Width (mm) : Variable | Table top 200mm

Depth (mm): 118.8

Height (mm): 0 ... 600

Mounting:

Force Gauge : Mounting plate for all FMI. FMI-B and FMI-S force gauges

Base plate : Standard M6 Gewindebohrung in Tischplatte | Befestigungsbohrungen für T-Nutenplatte oder Sonderwerkzeug

Ports:

2 x USB : USB A socket for force gauge | USB-B socket for PC

24V DC : In- and Output

M12 sensor plug : Protective device (emergency stop)

D-Sub : Digital I/O's

Power supply:

Type : External Universal Power Supply 100 ... 240VAC (50 / 60Hz)

Weight kg: 16.7
