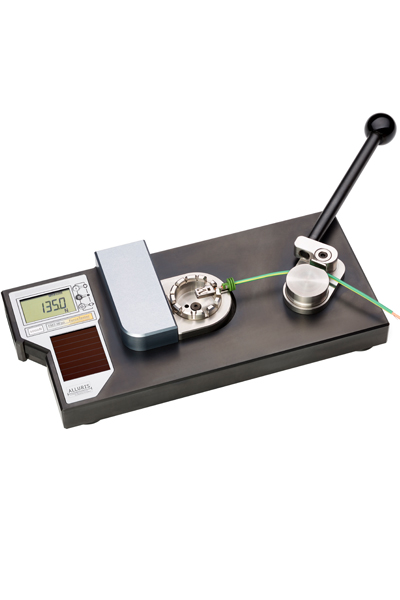

Alluris FMT-W30C5 Manual Pull Tester (500N)

Capacity F(nom) (N): 500

Resolution (N ): 0.5

Tolerance( % F(nom) ): 0.5

Temperature coefficient (% / K): 0.02

Reproducibility (% F): 0

Repeatability (% F ): 0.3

Hysteresis( % F ): 0

Max. operating force (% F(nom)): 120

Measurement error (% F(nom)): 1

Breaking force( % F(nom)): 150

Nominal deflection (mm): 0.15

Display (Type):  LCD. 5 digits. 14mm high

Measuring principle : Force sensor with full-bridge strain gauge and high-speed µ-processor

Measuring rate( Hz (Peak) ): ~ 1000

Memory (): Statistics memory with display of the mean. maximum. minimum and standard deviation for 1000 measurements

Cable diameter ():

mm (slot width)( 0.5 | 0.8 | 1.0 | 1.3 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 5.0 | 6.0):

mm (clamping device) (0.1 - 6.0):

Cross section():

Range IEC 60352-2( 0.05 - 4mm² (AWG 10 - 30)

Range SAE AS7928 II (AWG 14 - 30)

Min. cable length( mm ): 70

Power supply( Type ): Solar cell or via USB interface with connected PC | Optionally with USB power supply

Interface : USB 2.0; Optional: software FMT-W_Connect

Adm. temperature():

Operation (°C) : 0 - 40

Stocking (°C) : -65

Weigth (kg): 14

Dimension (LxWxH)( mm ): 350 x 160 x 75

Material : Anodised aluminum. surface hardened steel. stainless steel V2A\
