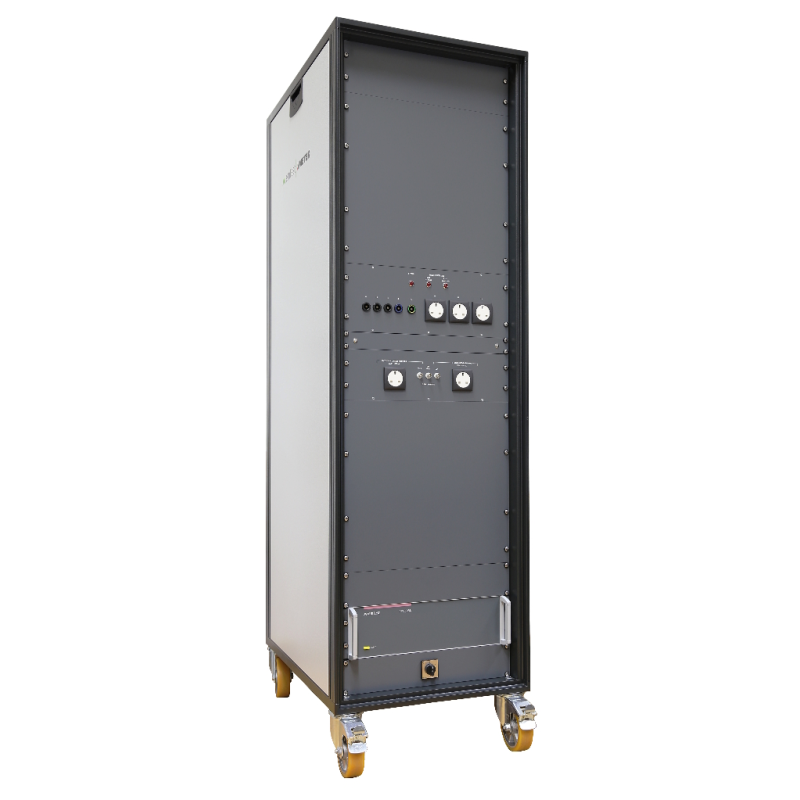

AMETEK CTS AIF 503N75.4 3-Phase Harmonics and Flicker System (1 - 75 A; 0.1 - 10 A; 5 - 500 mA)

Current standard range: 1 - 75 A

Addtitional ranges:

Low Current: 0.1 - 10 A, included

Very Low Current: 5 - 500 mA, optional VLCM Kit DPA 503N

Voltage :3 x 400V ±10%

Frequency: 47 - 63 Hz

Impedance Zref:

included, according IEC 60725

line 0.24 Ω + j0.15 Ω and neutral 0.16 Ω + j0.10 Ω

Impedance Ztest: included, line 0.15 Ω + j0.15 Ω and neutral 0.10 Ω + j0.10 Ω

Dimensions: 19" rack, 38 HU, mounted on wheels

Weight: 250 kg / 551 lbs

Mains supply: 86 - 264 V, 50 - 60 Hz Hz, max. 200 W

Control: Ethernet interface to control DPA 503N (through included Ethernet to USB adapter)

Environment: 0 - 40 °C, 10 - 90 % (non-condensing), 3 kV insulation voltage (input to housing)
