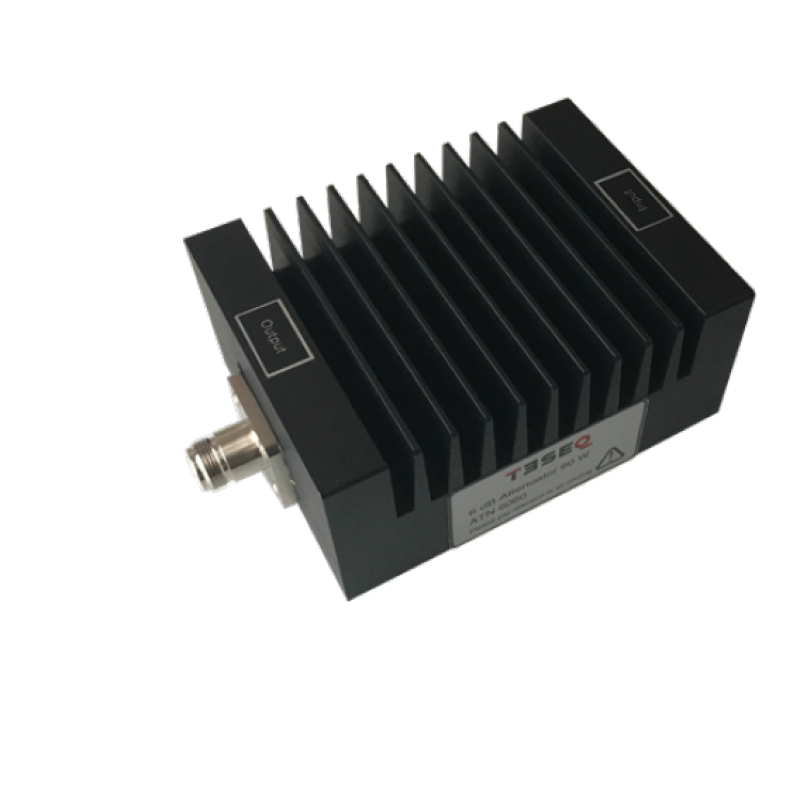

AMETEK CTS ATN 6060 RF Fixed Attenuator (6 dB; 60 W cw N(f)-N(f))

Impedance: 50 Ω

Frequency range: 0 - 1000 MHz

Insertion Loss: 6 dB ±0.5 dB

Insertion loss flatness: ±0.5 dB

max. VSWR: 1 : 1.25

Power rating at +25ºC / +125ºC: 60 W/8 W

Temperature range: -55° C to +125° C

Input connector: N female

Output connector: N female

Dimensions (L x W x H): approx. 177 x 100 x 60 mm

Weight: approx. 1500 g

Datasheet
