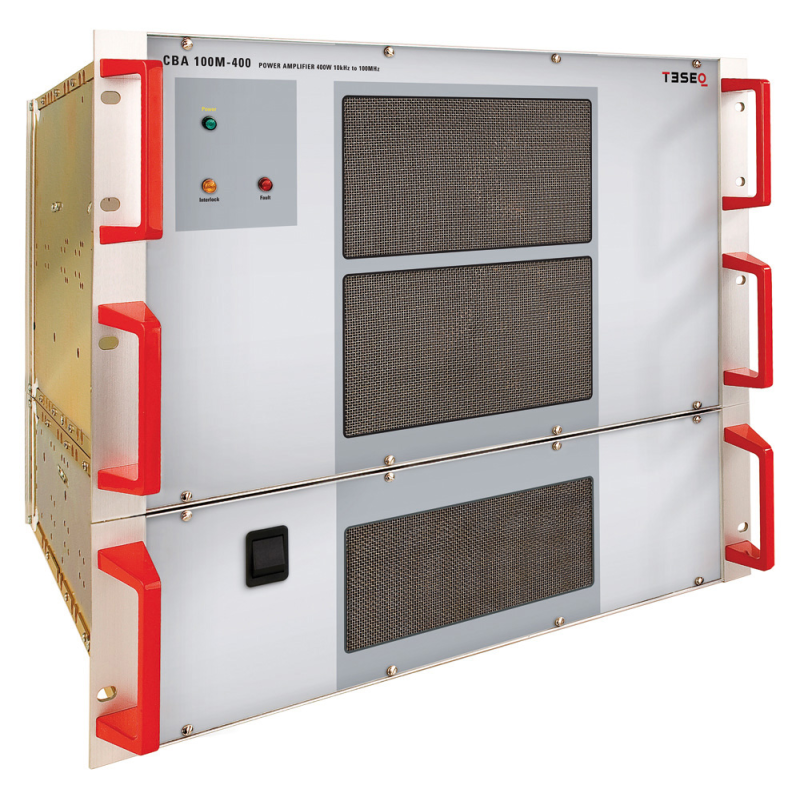

AMETEK CTS CBA100M-400-002 RF Power Amplifier (0.01 - 100 MHz; 450W; 320W)

Rear Panel RF Connectors

Frequency Range: 0.01 - 100 MHz

Rated Output Power: 400W (min) - 450W (typ)

Power Output @ 1dB Compression: 300W (min) - 320W (typ)

Input for Rated Output: 1 dBm

Small Signal Gain: 57 dB

Gain Variation (max): ±2.0 dB

Harmonics @ P1dB (min): -20 dBc

Spurious: -70 dBc

Input VSWR: 2:1 (max)

Output VSWR: 2:1 (typ)

Output Impedance: 50 Ohm

3rd Order Intercept Point: 75 dB

Noise Figure: 12 dB

Modulation Formats: AM, FM, PM, ODFM

Maximum Input Power (no damage): 10 dBm

Output VSWR Tolerance: Infinite any phase (no foldback)

Stability: Unconditional

Supply Power (typ): 2 KVA

Supply Voltage: 90 to 264 VAC

Dimentions (No Cabinet) (W x H x D): 48.3 x 40 x 44 cm (19 x 15.8 x 17.3 in) (9U)

Weight (No Cabinet): 33 Kg (72.7 lb)

Com. Interface: GPIB, Ethernet & USB
