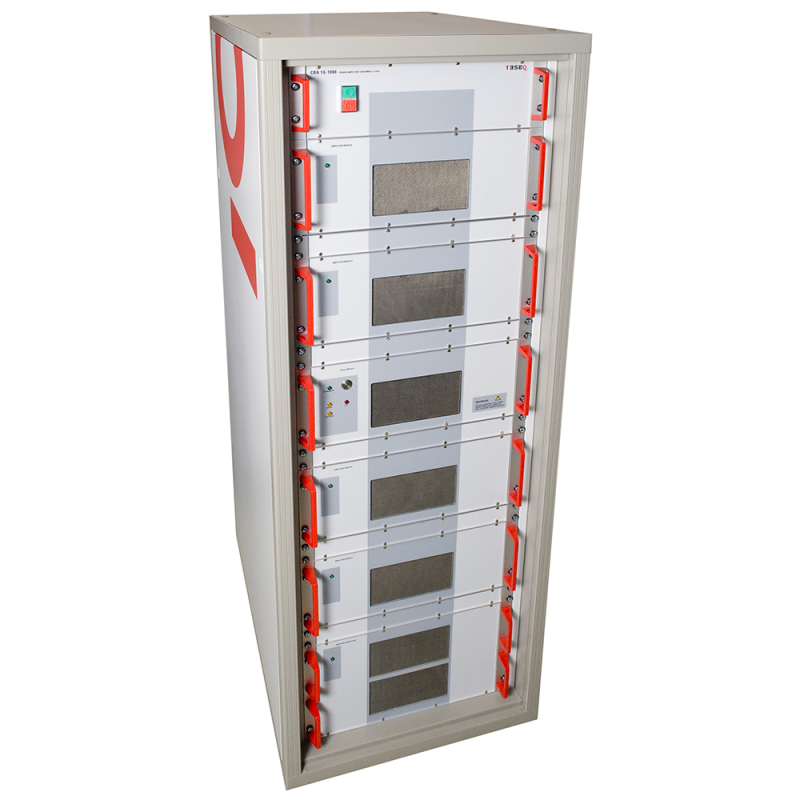

AMETEK CTS CBA250M-2500-004 Solid State Amplifier (0.01 - 250 MHz; 2800W; 2100W; 3 Phase, 5 Wire (3P+N+E), 380 ~ 415 VAC)

Rear Panel RF Connectors, 3 Phase, 5 Wire (3P+N+E), 380 to 415 VAC Line to Line

Frequency Range: 0.01 - 250 MHz

Rated Output Power: 10KHz-100MHz - 2500W (min) 2800W (typ)

Rated Output Power: de-rating from 100-250MHz - 2500W to 1900W (min)

Power Output @ 1dB Compression: 10KHz-80MHz - 2100W (min)

Power Output @ 1dB Compression: de-rating from 100-250MHz - 2100W to 1400W (min)

Input for Rated Output: 1 dBm

Small Signal Gain: 64 dB

Gain Variation (max): ±3.0 dB

Harmonics @ P1dB (min): -20 dBc

Spurious: -70 dBc

Input VSWR: 2:1 (max)

Output VSWR: 2:1 (typ)

Output Impedance: 50 Ohm

3rd Order Intercept Point: 73 dB

Noise Figure: 10 dB

Modulation Formats: AM, FM, PM, ODFM

Maximum Input Power (no damage): 10 dBm

Output VSWR Tolerance: Infinite any phase

Stability: Unconditional

Acoustic Noise (measured @ 1 M): 64 dBA

Supply Frequency: 47 to 63 (Hz)

Supply Power (typ): 11 KVA

Dimentions (With Cabinet) (W x H x D): 51.0 x 151 x 80 cm (20.1 x 59.5 x 31.5 in) (34U)

Weight (With Cabinet): 291 Kg (642 lb)

Com. Interface: GPIB, Ethernet & USB
