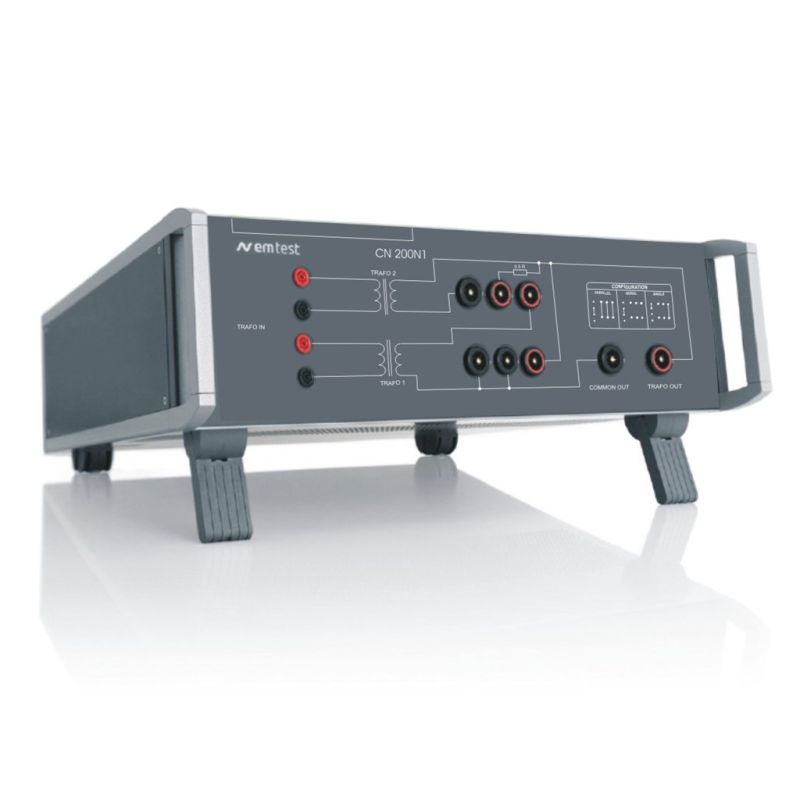

AMETEK CTS CN 200N1 Audio Transformer (10 Hz~250 kHz; 2 x 200 W)

Secondary current (saturation): max. 50 A (AC / DC)

Ratio: 2:1 step down

Audio power: 2 x 200 W

Secondary voltage (insulation): 600 VDC

Secondary inductance: approx. 1 mH (unloaded)

Frequency response: 10 Hz ... 250 kHz

Primary configuation: Single, series or parallel connection

Secondary configuration: Single or parallel load (with optional load 0.5 Ω / 250 W)

Primary connectors: 4 mm safety lab

Secondary connectors:High current safety lab connectors

Dimension: 19", 3 HU; 447 x 395 x 154 mm

Weight: 25 kg

Cooling: Passive cooling

Operating temperature: +10 ... +40 °C

Humidity: max. 85 % , non-condensing

Athmospheric pressure: 860 ... 1060 mbar
