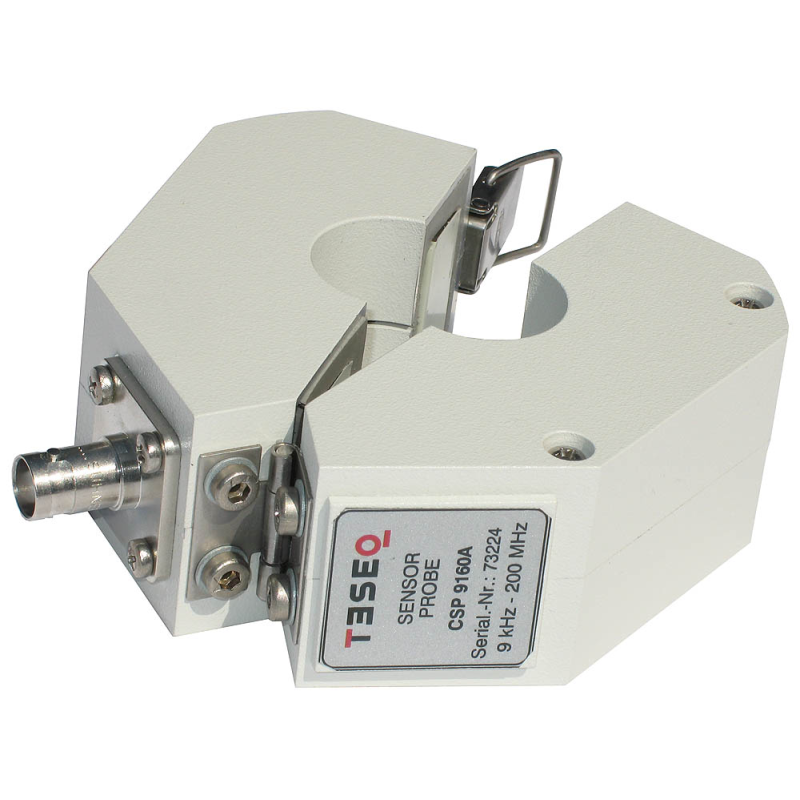

AMETEK CTS CSP 9160A Current Sensor Probe (9 kHz ~ 250 MHz)

Frequency range: 9 kHz to 250 MHz

Insertion loss: 34 dB ±2 dB (50 Ω system, 100 kHz to 120 MHz) typical ±1 dB, see also the graphs

Transfer impedance, transducer factor: as given in the graphs

Insertion impedance: <1 Ω

Signal output: BNC socket

Max. primary current (aperture) 50 ARMS (CW), DC – 60 Hz

1.5 ARMS (CW), 9 kHz - 250 MHz

Classification: Indoor use only

Operating temperature: 0°C to +40°C

Storage and transport temperature: -10°C to +60°C

Relative humidity: up to 90% (no moisture condensation)

Window diameter (aperture): 25.4 mm

Dimensions (L x H x W) in mm: 105 x 80 x 38

Weight: approx. 525 g

Dimensions of the storage case in mm: 260 x 70 x 210

Weight: approx. 350 g
