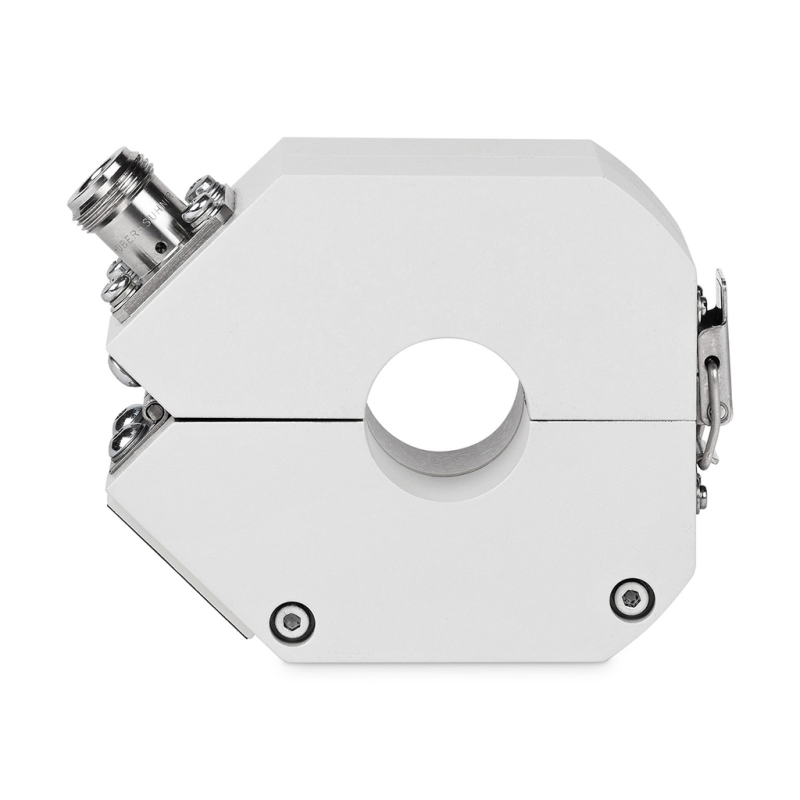

AMETEK CTS MDP 4070A Passive Current Sensor Probe (9 kHz ~ 400 MHz)

Frequency range: 9 kHz to 400 MHz

Insertion Loss: typical 18.5dB ±3 dB (50 Ω system, 100 kHz to 100 MHz)

Transfer impedance: see graph for typical values

Signal output: Type-N, jack (female)

Max. signal current (DC,50/60 Hz) 3 A

Max. signal current (RF) 500 mA

Classification: Indoor use only

Operating temperature: 0°C to +40 °C

Storage and transport temperature: -10°C to +60 °C

Relative humidity: up to 90% (no moisture condensation)

Mechanical specification of the probe

Aperture, window diameter 25.4 mm (1.0 in)

Diemensions (L x W x D): 105 x 82 x 38 mm³

Free cable diameter: 23 mm

Weight: approx. 525 g
