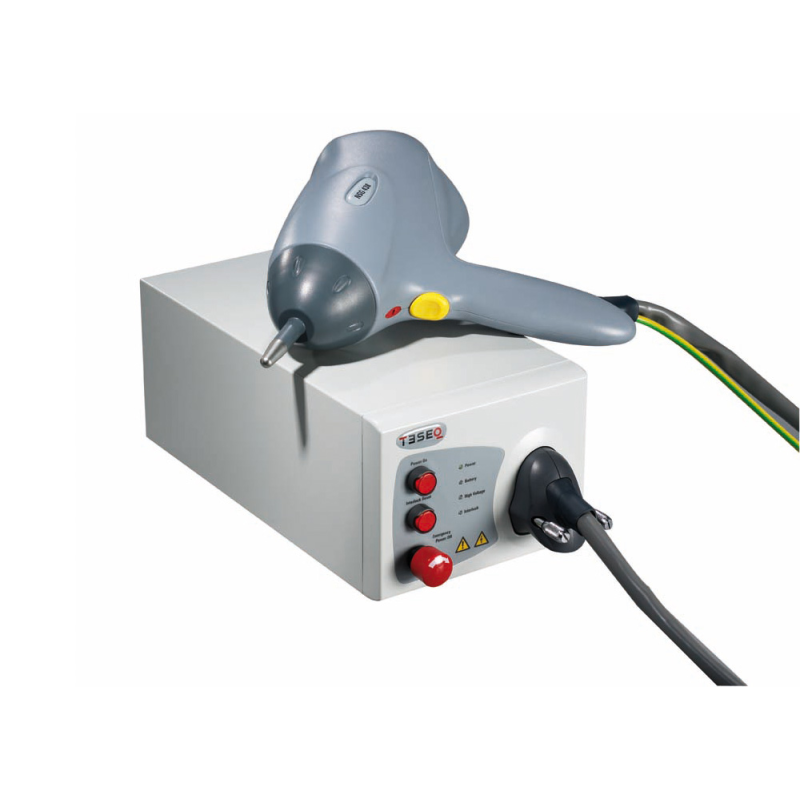

AMETEK CTS NSG 438-auto 30 kV ESD Simulator (200 ... 30'000 V ± 5 %)

Air discharge voltage: 200 ... 30'000 V ± 5 %

Contact discharge voltage: 200 ... 30'000 V ± 5 %

Holding time: > 5 s (voltage drop max. -5%)

Frequency / repetition:

0.5, 1 ... 20 Hz in 1 Hz steps; 25 Hz (only air discharge)

Free / period: 0.04 ... 300 s in 0.01 s steps

Polarity: pos / neg / alternating

Operating modes: single / continuous

Counter: 0 ... 9'999

Threshold detection: Yes

Discharge tips: exchangable, ball and point according to ISO 10605, discharge sphere 25 mm

Display: Color touch screen

Power supply: NiHM battery, 2080mAh; power mains

Number of discharge with battery: 30'000 @ 30kV

Built-in bleed off: No

External bleed off option: Yes, with INA 4430

Remote interface: Yes, fiber obtic link to USB

Remote control software: Yes, esd.control (limited support)

Interlock: Yes

Remote Trigger: Yes

EUT Fail: Yes

Self calibration: Yes, after power up, at any time

R/C module detection: Yes

Storing user tests: Yes

Power mains (base station): Input: 100 ... 240 VAC, 1.4 A max. , 50 ... 60 Hz; Output: 24 VDC, 2.71 A

Weight (base station): approx. 6.5 kg

Weight gun incl. discharge network: approx. 1'250 g

Dimension: Base station: 170 x 360 x 140 mm;

Discharge gun: 85 x 270 x 260 mm

Operating temperature: +5 ... + 40°C

Humidity: 20 ... 80 %, non condensing

Athmospheric pressure: 860 ... 1'060 mbar

Scope of delivery

-Discharge unit / gun

-Base station incl. battery pack

-Power mains adapter

-AD / CD tip, discharge sphere 25 mm

-Ground return cable 2 m

-Discharge network 150 pF / 330 Ω

-Cradle

-Discharge network 150 pF / 2000 Ω

-Discharge network 330 pF / 330 Ω

-Discharge network 330 pF / 2000 Ω
