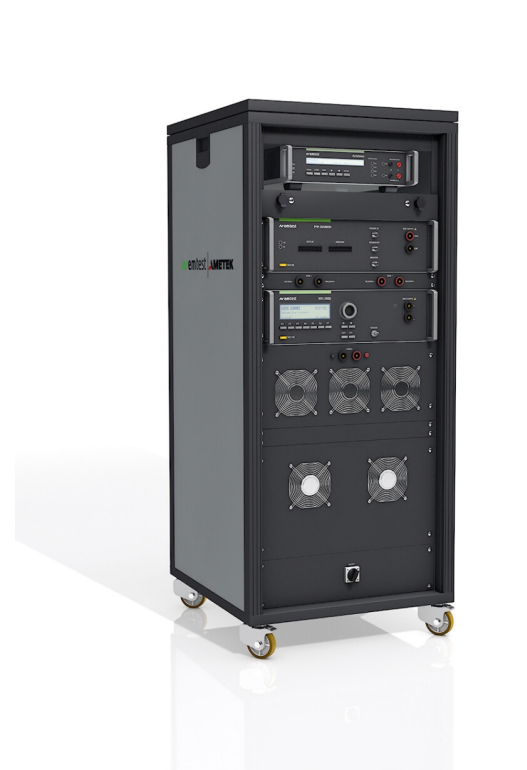

AMETEK CTS VDS 200R100 Linear Power Amplifiers (200 V / 400 V; 0~+60 Vpk, 0~100 A, 150 kHz)

Output voltage (cont.): 0 ... +60 VDC

Output current (cont.): 0 ... 100 A

Inrush current max.: 200 A for 200 ms

Bandwith (-3dB): DC ... 150kHz, full signal

Slew rate: < 5 µs

Source impedance: < 10 mΩ

Compensation Modes: STD: DC ... 40 kHz / HF: up to 150 kHz

Recovery time: 90 % of max. excursion within 25 µs

Sense Lines: Yes, voltage drop compensation in cabling, max. 8 VDC (AC up to to approx. 8 kHz)

Ripple voltage ( noise): < 20 mVpp up to min. 400 Hz

Safety: Circuit breaker

Current limiter: 2x I continuous / peak off

Voltage limiter: Yes

Interface (remote): 1x IEEE, 1 x USB, (ethernet pass-through AutoWave)

Interfaces:

1x trigger IN

1x trigger OUT

1 x ± 10 analoge input

Cooling: Temperature- controlled air cooling

Power Mains:

200 V / 400 VAC ± 10 %

200 V : 3 x L + PE / 400 V: 3 x L + N + PE

Housing: 19" / 38HU rack

Dimension: 1940 x 550 x 800 mm

Weight: 450 kg

Operating temperature: 10 ... 40 °C

Humidity: 10 ... 90%, non-condensing

Pressure: 860 mbar ... 1060 mbar
