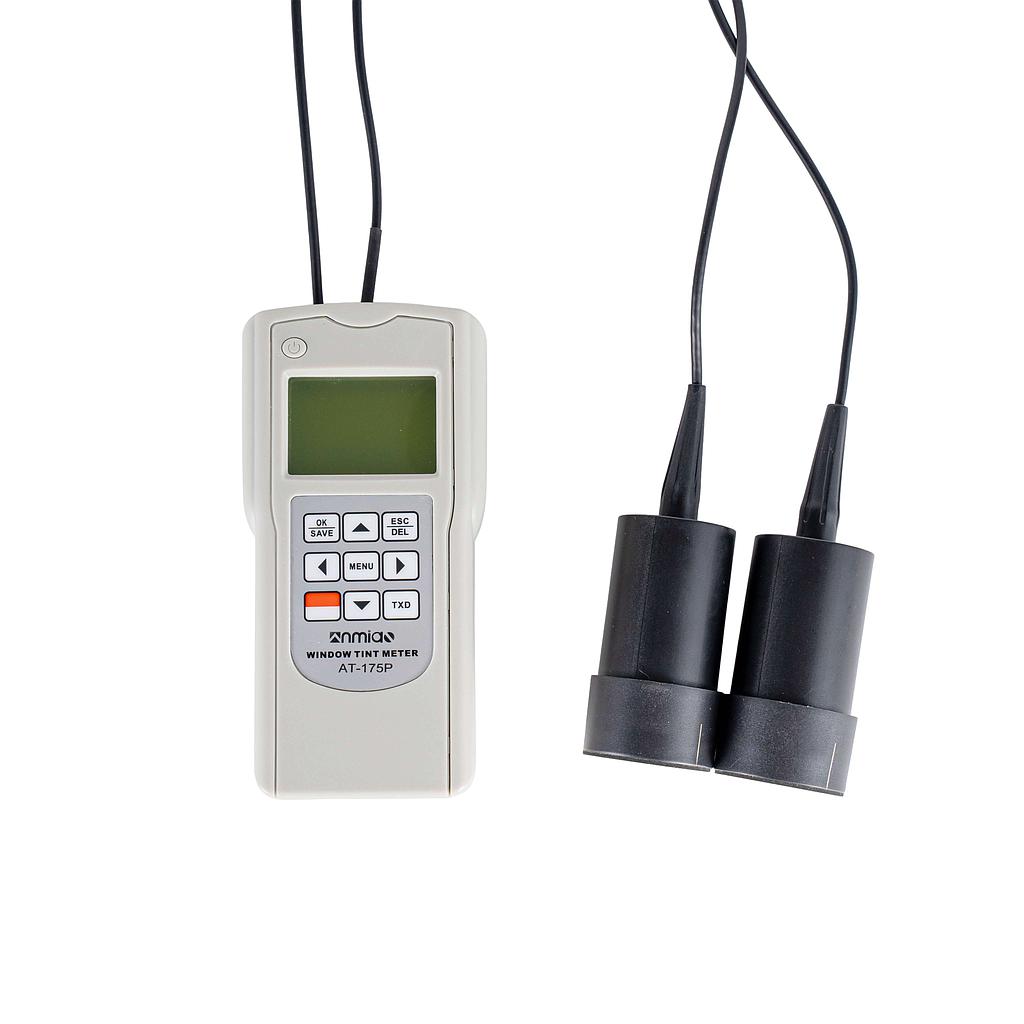

Amittari AT-175 Window Tint Meter (0.0%~100%)

Measurement range: 0.0%~100%

Measurement quantity: % beam transmission

Thickness of the object to be measured: <30mm

Volume of the measured object: <10mm × 10mm

Shutdown mode: Automatic shutdown or manual shutdown can be set

Backlight: LED backlight

Resolution: 0.1%

Host size: 70mm × 140mm × 30mm

Probe size: Φ37mm × 136mm

Power: 4 × 7 batteries

Operating temperature: 0°C~40°C

Operating humidity: <85%

Wavelength range: 380nm~780nm

Parts list

Optional Accessories (AT-175): host / packaging box / manual
