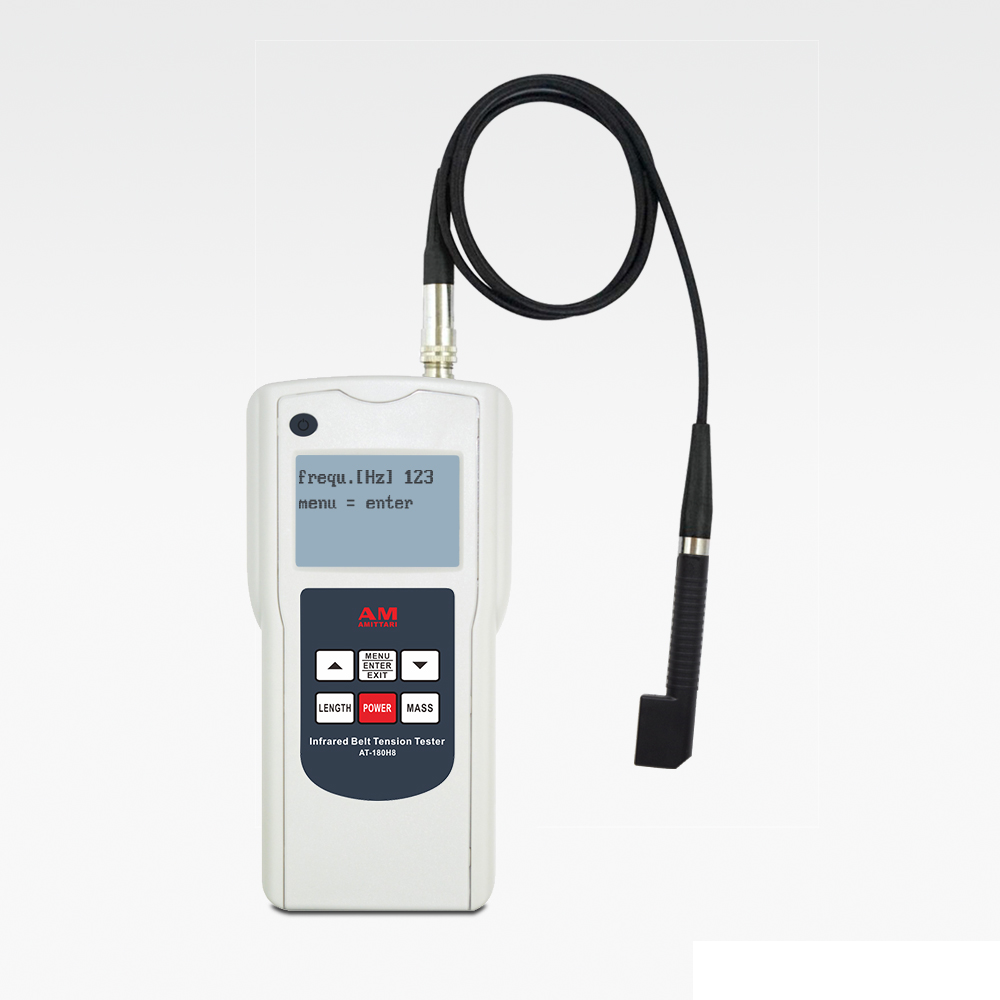

Amittari AT-180H8 Infrared Belt Tension Tester (10~800Hz)

Measurement Range: 10~800Hz

Input Range: Free Belt Length Max 99.99m

Input Range: Belt Mass Max 9.999kg/m

Digital Sampling Error: <1%

Display Error: ±1Hz

Total Error: <5%

Operating Temperature: +10~50°C

Transportation Temperature: -5~70°C

Display: LCD

Unit of Measurement: Metric (m, kg/m, N); Imperial (Inch, lbs/foot, lbf)

Optical Path Distance: 3~20mm

Depth of Split Sensor: About 66mm

Power Supply: 4×1.5V AAA Um-7 Battery

Size: Main Unit 140×70×31mm (5.5×2.8×1.2inch); Sensor 124×21×12mm (4.9×0.8×0.5inch)

Weight: 130g (including batteries) (4.59oz)

Standard Accessories: Main Unit, Split Sensor, Carrying Case, Operation Manual
