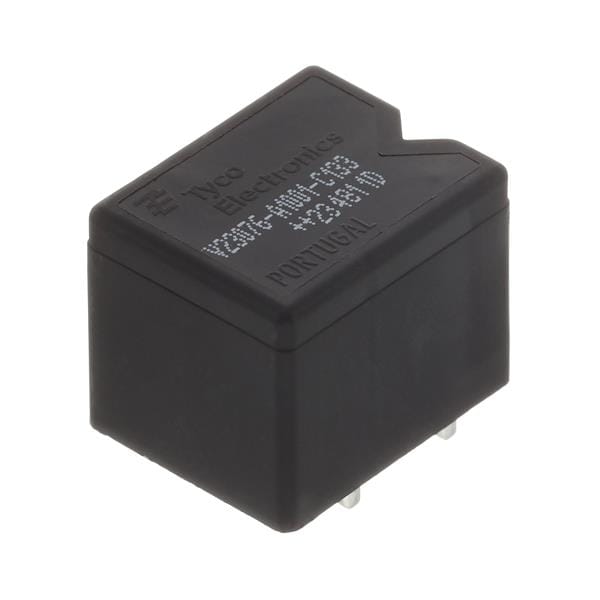

AMP Connectors - TE Connectivity 1393277-4 자동차 릴레이 V23076A1001C133

Width: 21.1 mm

Height: 21.2 mm

Length: 26.1 mm

Coil Type: Non-Latching

Unit Weight: 22 g

Coil Current: 45 A

Coil Voltage: 12 VDC

Mounting Style: PCB Mount

Coil Resistance: 90 Ohms

Coil Termination: Solder Pin

Contact Material: Silver Nickel (AgNi)

Power Consumption: 1.6 W

Relay Contact Form: 1 Form C (SPDT-NO, NC)

Contact Termination: Solder Pin

Contact Current Rating: 45 A
