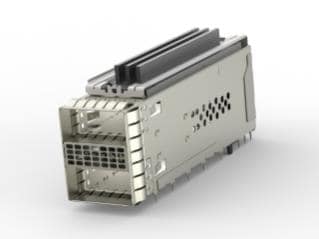

AMP Connectors - TE Connectivity 2299940-2 zQSFP+ ZQSFP+ ASSY 2X1,HS Without LP
Model2299940-2
문의하기
안전한 결제
품질 보장
간편 교환 및 반품
배송 가능
Pitch: 0.8 mm
Gender: Female
Data Rate: 132 Gb/s
Unit Weight: 1 g
Current Rating: 500 mA
Mounting Angle: Right Angle
Mounting Style: Through Hole
Contact Plating: Gold
Number of Ports: 2 Port
Contact Material: Copper Alloy
Housing Material: Polyester
Termination Style: Press Fit
Flammability Rating: UL 94 V-0
Number of Positions: 76 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
