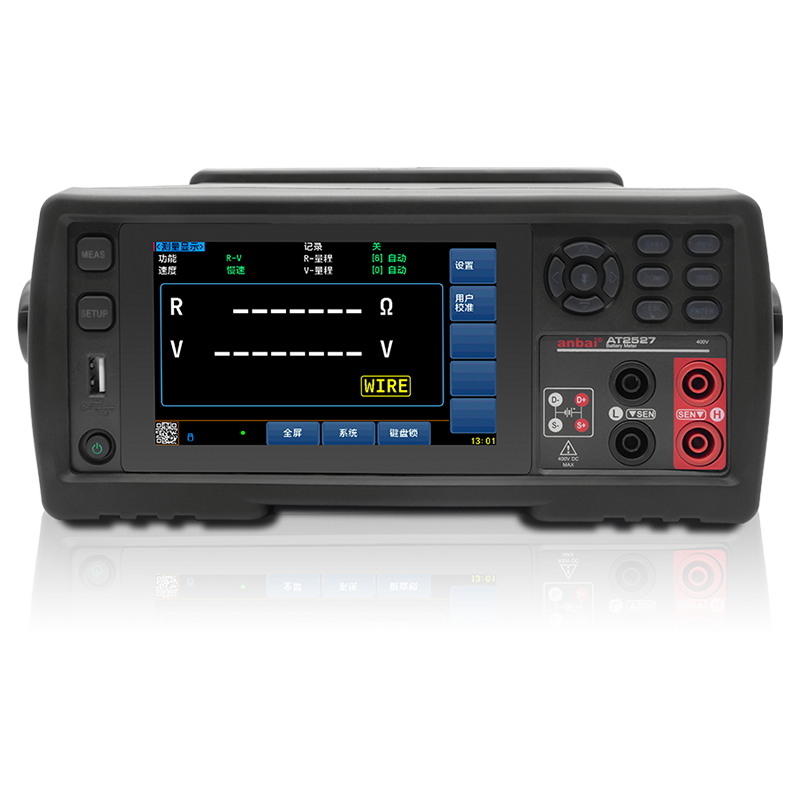

Anbai AT2527 Battery Internal Resistance Meter (0.0001mΩ~3.3000kΩ; 0.00001V~400.000VDC)

Parameter: AC resistance, DC voltage

Accuracy: R: 0.5%; V: 0.01%

Voltage: 0.00001V ~ 400.000V

Resistance: 0.0001mΩ ~ 3.3000kΩ

Signal Source: AC 1kHz

Range: 7 range automatic, manual, and nominal (the instrument will automatically select the optimal range based on the nominal value)

Test Speed: Slow 4 t/s ; Medium 8 t/s ; Fast 20 t/s ; ExFast 55 t/s

Result display: Direct reading, sorting results

Max display: R: 31,000; V: 2000,00

Calibration: Short circuit zero correction for all range

Comparator: RHI/RNG/RLO output; VHI/VNG/VLO output; NG/OK output

Trigger: Internal triggering; Manual triggering; External triggering and remote triggering

Interface: RS-232 ; RS-485 ; USB ; Handler (PLC); LAN

Others: 5 inch high-definition LCD display; Touch screen; Parameter monitoring function

Accessories: ATL527 Kelvin test leads; ATL108 RS232 Communication cable; ATL2527A Probe test cable
