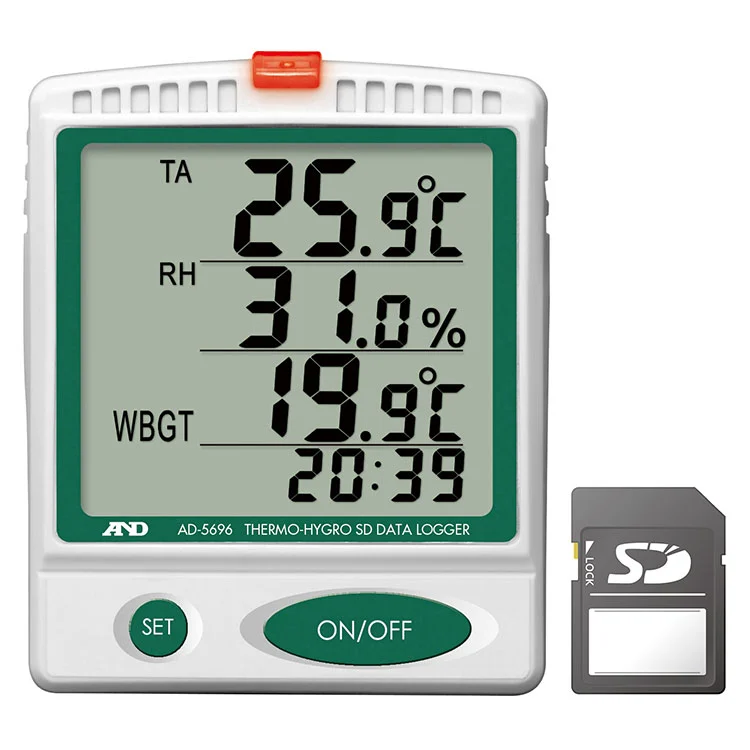

AND AD-5696 Temperature and Humidity SD Data Logger (0 ~ 50°C, 20%RH ~ 90%RH)

Display item: Heatstroke Index (WBGT), Temperature (Air Temperature TA), Relative Humidity (RH), Time

Measurement items: Temperature (Air Temperature TA), Relative Humidity (RH)

Heatstroke Index (WBGT) display range: -2°C ~ 62°C (minimum display: 0.1°C)

Measurement range:

Temperature (TA): 0 ~ 50°C (minimum display: 0.1°C)

Relative Humidity (RH): 20%RH ~ 90%RH (minimum display: 0.1%RH)

Measurement accuracy:

Temperature (Air Temperature TA): ±1°C (0 ~ 50°C)

Relative Humidity (RH): ±5% (30 ~ 70%RH) / ±10% (20.0 ~ 29.9%RH, 70.1 ~ 90.0%RH), at 25°C

Data Logger Function:

Record items: Date, time, temperature, relative humidity, heatstroke index (WBGT)

Data storage: SD card, SDHC card (SDXC not supported)

Power supply: AC adapter or 3×AA alkaline batteries (sold separately), battery life approx. 1 month (1-minute interval, no alarm, continuous operation)

External dimensions: 91 (W) × 110 (H) × 30 (D) mm

Body mass: Approx. 140 g (excluding SD card and batteries)

Accessories: SDHC card (8GB or more), AC adapter, instruction manual
