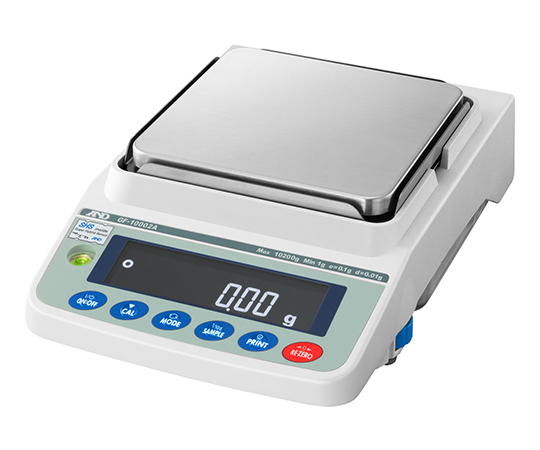

AND GF-10002A Precision Balance (10200g, 0.01g)

Capacity: 10200 g

Readability: 0.001 g

Repeatability (standard deviation): 0.02 g (10000 g), 0.01 g (5000 g)

Minimum weight(typical): 14 g

Linearity: ±0.03 g

Stabilization time (when set to FAST under a good environment): Approx. 1.5 sec, Approx. 0.8 sec (50 g)

Sensitivity drift: ±2 ppm/°C (10 to 30 °C/50 to 86 °F, when automatic self calibration is OFF)

Operating environment: 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation)

Display refresh rate: 5 times/sec, 10 times/sec or 20 times/sec

Units of measure: g (gram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight),

gr (grain), pcs (counting mode), % (percent mode), SG (density mode), and a user-programmable unit

Counting mode

Minimum unit mass: 0.01 g

Number of samples: 5, 10, 25, 50 or 100 pieces

Percent mode

Minimum 100% reference mass: 1.00 g

% readability: 0.01%, 0.1% or 1% (depends on the reference mass stored)

Communication interface: RS-232C and USB

Weighing pan size: 165 × 165 mm

External dimensions: 2212(W) × 317(D) × 93(H) mm

Net weight: Approx. 5 kg

Power supply / consumption: AC adapter / approx. 30 VA
