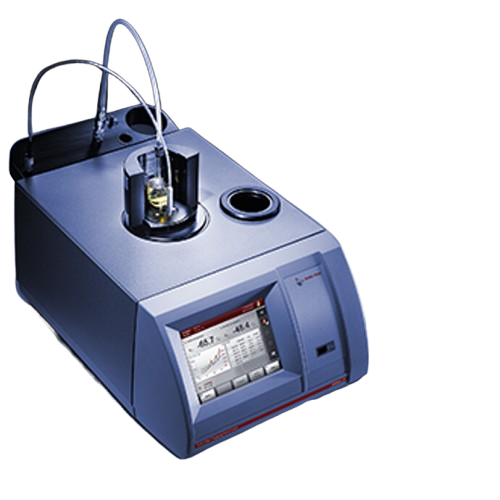

Anton Paar Callisto 100 Cold Filter Plugging Point Tester (-60 °C ~ +45 °C; 6 °C/h ~ 100 °C/h)

Measuring range: -60 °C to +45 °C

Cooling profiles: Programmable stepped or linear (from 6 °C/h to 100 °C/h)

Calibration: Automatic calibration routine for sample and jacket temperature and vacuum measurement

Temperature probe correction table

External cooling units: User-supplied or available from Anton Paar as an accessory

Cooling power: 280 W at -20 °C

Data memory: 1000 results; 90 user-defined programs

Data export: Connectivity via USB stick, e.g. to export test results as XLS or PDF files

Interfaces: 4x USB, 1x RS232, 1x LAN, 1x VGA

Power supply: 100 V to 240 V, 50 Hz/60 Hz, 290 VA

Dimensions: 340 mm x 580 mm x 310 mm (W x D x H)

Weight: 14 kg

Resolution: 0.1 °C
