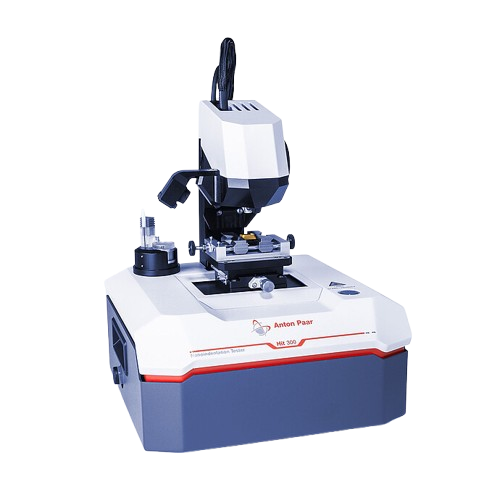

Anton Paar Hit 300 Nanoindentation Tester (500 mN; 200 μm)

Maximum load: 500 mN

Load noise floor [rms]: ≤ 1 μN

Load resolution: 0.02 μN

Depth range: 200 μm

Depth resolution: 0.01 nm

Depth noise floor [rms]: ≤0.3 nm

Frame compliance: ≤0.3 μm/N

Motorized X table travel range: 40 mm

Manual Y table travel range: 40 mm

Anti vibration table included: Yes, active electronic system

Laser indicating indentation position: Crosshair

Optional video camera: ≥3x magnification; resolution 5.04 megapixel

Dimensions (width x depth x height): 269 mm x 259 mm x 420 mm

Weight: 13,5 kg

Standard compliance: ISO 14577, ISO 19278, ASTM E2546
