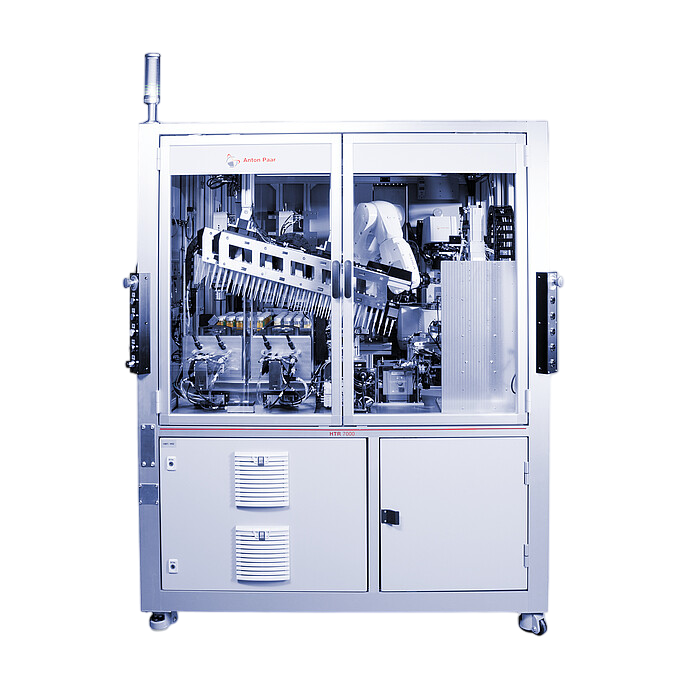

Anton Paar HTR 7000 Automated Rheometer Workflow (400 V, 16 A, 50/60 Hz)

Dimensions (W x D x H): approx. 1,650 mm x 1,500 mm x 1,980 mm

Dimensions unassembled (W x H): max. 980 mm x 1,980 mm

Weight (net): approx. 1,000 kg (max. 400 kg/m²)

Mains supply: 400 V, 16 A, 50/60 Hz

Media interfaces: Compressed air, cleaning solvents

Waste disposal: Drain for liquids

Communication interface: Ethernet

Rheometer MCR 702 MultiDrive specifications

Max. torque: 230 mNm

Min. torque (rotation): 1 nNm

Min. torque (oscillation): 0.05 nNm

Max. angular velocity: 314 rad/s

Max. angular frequency: 628 rad/s

Normal force range: 0.005 N to 50 N
