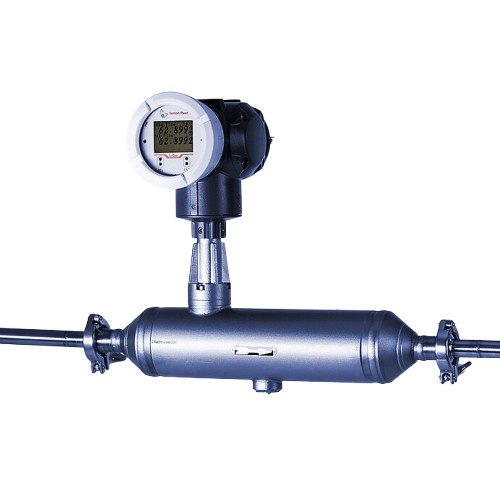

Anton Paar L-Cor 6000 Hygienic Flow Meter (36 kg/h ~ 61 200 kg/h)

Measuring range: 36 kg/h to 61 200 kg/h

Flow accuracy: ± 0.15 % ± ZS*

Flow repeatability: ± 0.075 % ± ½ ZS*

Density range: 500 kg/m3 to 1,000 kg/m3 or

700 kg/m3 to 1,300 kg/m3 or

1000 kg/m3 to 1,500 kg/m3

Density accuracy: ± 2 kg/m3

Nominal diameter: 1/2” to 3”

Ambient temperature: - 40 °C to +55 °C

Process temperature: - 40 °C to +130 °C

Process pressure absolute: According to flange specification

Process connection: ASME B16.5 Class 150

Tri-clamp ISO 2852

Wetted parts: Titanium alloy

Approvals for potentially explosive atmospheres: ATEX, IECEx, CSA (C-US), NEPSI (CCC)

Outputs: 2x analog, 2x pulse (frequency), 1x status output

Inputs: 1x status input

Digital communication: Bell 202, Modbus RTU (RS-485), Profibus PA, Fieldbus

Transmitter version: Integrated, separately mounted, mounted in control cabinet

Certifications: EHEDG

*Accuracy valid at reference conditions. ZS = Zero stability error = (Zero stability)/(Flowrate at the moment) x100%
