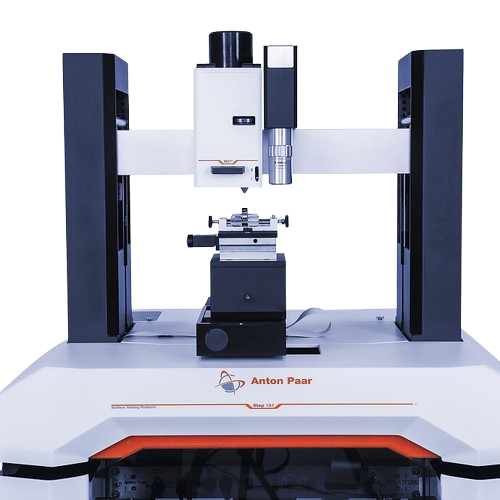

Anton Paar MCT³ Micro Combi Tester (30N; 1000μm)

Maximum load [N]: 30

Load resolution [μN]: 6

Load noise floor [rms] [μN]: 100

Loading rate [N/min]: up to 300

Depth range [μm]: 1000

Depth resolution [nm]: 0.03

Depth noise floor [rms] [nm]: 1.5

Data acquisition rate [kHz] : 192

Scratch speed [mm/min]: 0.1 to 600

Options

Peltier heating up to 120 °C: ✓

Heating stage up to 200 °C: ✓

Cooling down to -120 °C: ✓

Liquid testing: ✓
