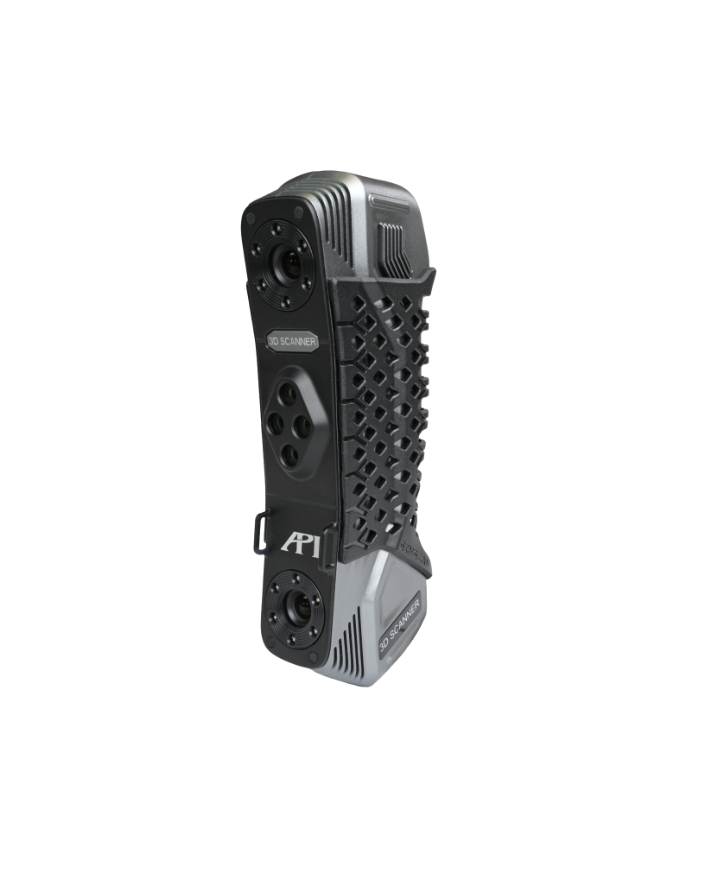

API iScan Lite-22 3D Blue Laser Line Scanner (1,250,000 measurement/s)

Ultra-fast scanning mode: 7 blue laser crosses

Hyperfine scanning mode: 7 blue parallel laser lines

Deep hole scanning mode: 1 extra blue laser line

Accuracy (1): Up to 0.020 mm

Scanning rate: Up to 1,250,000 measurement/s

Scanning area: Up to 650 mm x 550 mm

Laser class: Class II (eye-safe)

Resolution: 0.020 mm

Standard Volume accuracy (2): 0.015 mm + 0.035 mm/m

Volume accuracy paired with MSCAN-L15: 0.015 mm + 0.012 mm/m

Stand-off distance: 300 mm

Depth of field: 550 mm

Output formats: .pj3, .asc, .igs, .txt, .mk2, .umk, .stl, .ply, .obj

Operating temperature range: -10 °C to 40 °C

Interface mode: USB 3.0

Dimensions: 203 mm x 80 mm x 44 mm

Weight: 570 g
