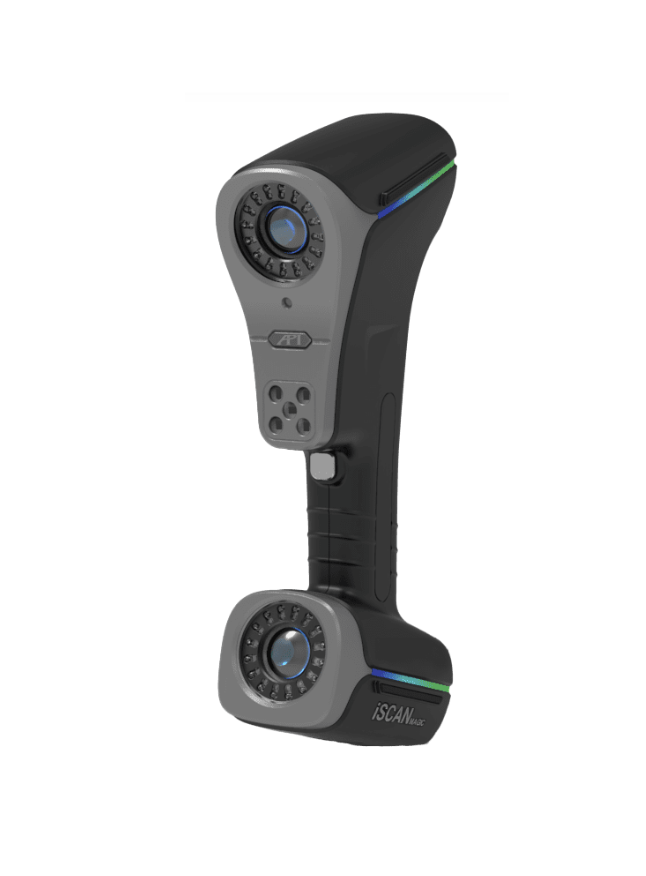

API iScan Magic Composite 3D Scanner (4,150,000 measurements/s)

Ultra-fast scanning mode: 17 blue laser crosses

Hyperfine scanning mode: 7 blue parallel laser lines

Large area scanning mode: 11 parallel infrared laser lines

Deep hole scanning mode: 1 extra blue laser line

Accuracy (1): Up to 0.020 mm

Scanning rate: Up to 4,150,000 measurements/s

Scanning area: Up to 1440 mm x 860 mm

Laser class: Class II (eye-safe)

Resolution: Up to 0.010 mm

Photogrammetry System

Scanning area: 3760 mm × 3150 mm

Depth of field: 2500 mm

Volume accuracy (2)

Work alone: 0.015 mm + 0.030 mm/m

Standard: 0.015 mm + 0.020 mm/m

Paired with MSCAN-L15: 0.015 mm + 0.012 mm/m

Stand-off distance: 300 mm

Depth of field: 925 mm

Output formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, etc.

Operating temperature range: -10 °C to 40 °C

Interface mode: USB 3.0

Dimensions: 12.5” x 5.5” x 3.5”

Weight: 1190 g
