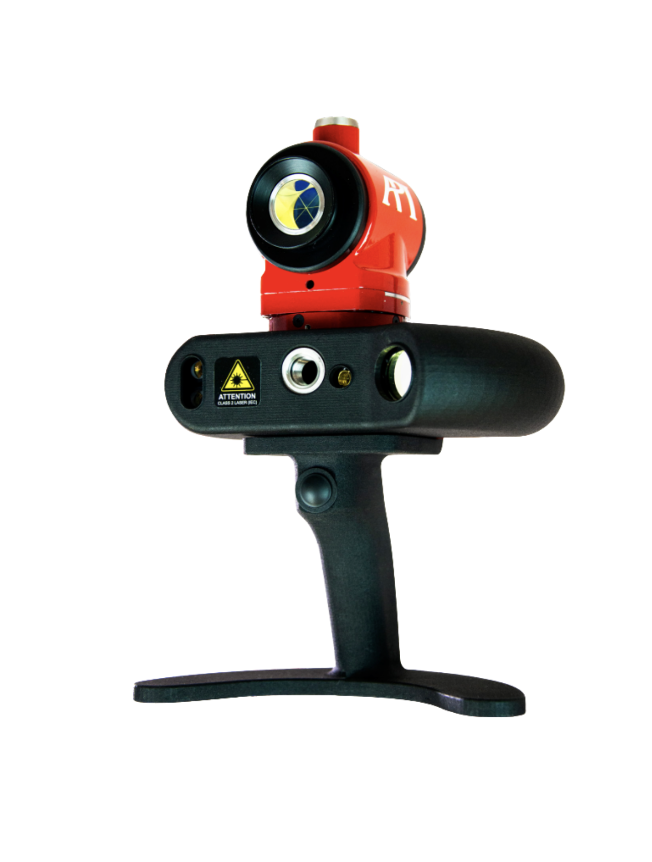

API iScan3D Laser Line Scanner (± 40 mm, 110 mm × 100 mm)

Spatial Length (2σ):

Distance 2 – 7 m: ± 50 µm

Distance 7 – 15 m: ± 80 µm

Distance Above 15 m: ± (20 µm + 4 µm/m)

Sphere Radius (2σ):

Distance 2 – 7 m: ± 50 µm

Distance 7 – 15 m: ± 80 µm

Distance Above 15 m: ± (20 µm + 4 µm/m)

Surface (2σ):

Distance 2 – 7 m: ± 60 µm

Distance 7 – 15 m: ± 100 µm

Distance Above 15 m: ± (40 µm + 4 µm/m)

Vertical Probe (100mm):

Distance 2 – 7 m: ± 75 µm

Distance 7 – 15 m: ± 100 µm

Distance Above 15 m: ± (75 µm + 4 µm/m)

Horizontal Probe (100mm):

Distance 2 – 7 m: ± 125 µm

Distance 7 – 15 m: ± 150 µm

Distance Above 15 m: ± (125 µm + 4 µm/m)

Angle Acceptance: ±45° (Pitch and Yaw), 360° Roll

Sampling Frequency: 100 Hz

Maximum Scanning Speed: 200,000 pts/sec

Laser Class: Class II (eye safe)

Laser Line Width: 150 µm

Laser Line Color: Blue

Minimum Point Spacing: 70 µm

Stand Off Distance: 170 mm ± 40 mm

Depth of Field: ± 40 mm

Field of View: 110 mm × 100 mm

Size and Weight: H 265 mm × W 110 mm × L 110 mm / 1.03 kg

Working Range: Up to 50 m (using 50m cable)

iVision Field of View: 30° (diagonal)

Acquisition Range: 2 m – 40 m

IP Rating: IPX0

Pollution Degree: Degree II

Operating Temperature: +5 °C to +35 °C

Storage Temperature: -10 °C to +45 °C

Relative Humidity: 10% – 95% (non-condensing)

Power Supply Voltage: 110V / 230V ± 10%

Supply Voltage Fluctuation: ± 10%

Over Voltage Category: Category 2

Power Consumption: 100 W

Operational Voltage & Current: 12V DC, 1.67 A
