Specifications of the new iTOXcontrol:
Smaller footprint: 50x50x 183 cm (D x W x H).
Communication: integrated 4-20 mA signal, TCP/IP
Optional: modem for telephone connection or additional RS232 connection.
Very reliable, low running & maintenance cost.
TOXview software for data acquisition & evaluation.
Can be used with automatic, in-line dechlorination.
Optional UV-VIS sensor for TOC, COD, BOD, turbidity, SAC254, NO3-N
- Sample temperature: 15 - 30 degrees C.
- Working conditions (room temperature):
a. Standard: 15 - 30 degrees C.
b. Optional: 30 – 40 degrees. C. with additional cooling unit.
- Communication:
a. standard: TCP/IP, Analog output: 4 – 20 mA
b. optional: external USB modem 56k
c. optional: External COM port for MODBUS data communication.
- Cabinet: protection class IP 31.
- Sample water: + 10 ml/h (4,5 ml per measurement, 2 per hour)
- Reference water: + 100 ml/h per measurement, not chlorinated,
optional dosage with a magnetic valve.
- In-line, automatic dechlorination is possible
- Connections:
a. Drain : waste and positive control: 20 mm (external)
b. Feed : sample and reference: 4 mm (external, for silicone tubing)
Hardware:

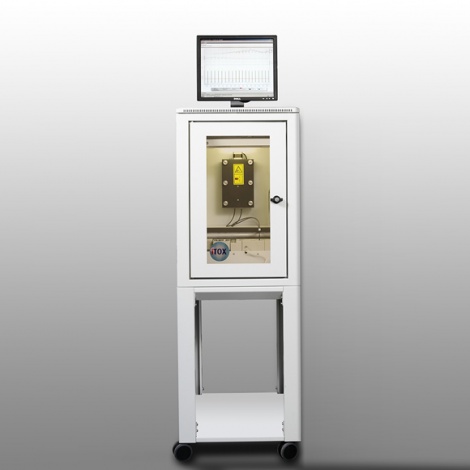

The iTOXcontrol is placed in a ventilated cabinet:
- Size: 50 x 50 x 110 cm (DxWxH), with trolley an extra 73 cm.
- Weight: + 90 kg (+ 20 kg with optional air-conditioning)
- Housing with glass front door, can be locked for protection.
- Build-in PC with keyboard and touchpad, DVD reader/writer.
- 17 inch TFT screen, Ethernet Controller, COM port and USB connectors
- Power: 220V - 50 Hz or 110V - 60Hz
For specific range please check the attachment below!
