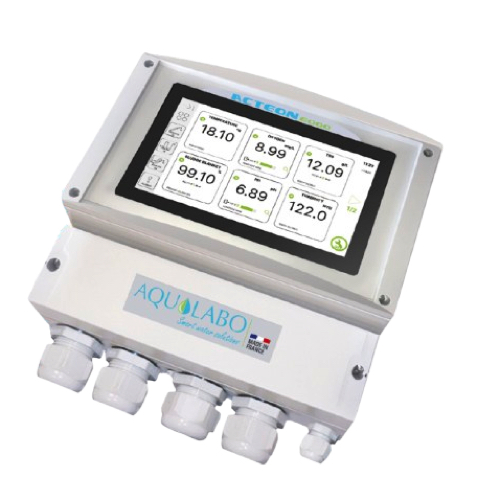

Aqualabo ACTEON 6000 Multi-channel Digital Field Transmitter (10-28 VDC; 100 W)

SOFTWARE AND FEATURES

2 Modbus networks inputs: Modbus RTU (A = DIGISENS sensors ; B = configurable)

Digital sensor inputs: 4 (Modbus RTU A network) + 1 Modbus RTU B network configurable

2 analog inputs: Configurable in 0/10 V – 0/4 -20 mA. 12 VDC sensor power supply

2 digital inputs: External cleaning information taken into account: switches to maintenance mode

4 analogue outputs: 0/4-20 mA • Choice of programmable source parameters depending on connected sensors

4 relay outputs:

NO/NC configurable via software

Setpoint: configuration of the working range (hysteresis/direction) and activation time

Timed control for external cleaning system

Hardware sensor fault alarm output

3 digital outputs: NO/NC configurable via software

Configurable supply voltage: 5 or 12VDC

Modbus outputs: Modbus RTU • Ethernet TCP/IP

Data logging: Data logging and export in CSV format (via USB key)

Atmospheric pressure sensor: To compensate oxygen pression

CHARACTERISTICS

Display: Backlit graphic LCD touchscreen – Size: 7 inches, 1024x600

Analog outputs: 0/4.00 – 25.00 mA with galvanic isolation • Max load 400 W

Relay outputs: 6 A /250 V

Operating conditions:

Temperature: -15°C to + 50 °C • Temperature of storage/transport: -30°C to +70°C

USB port: Unloading of the recorded data

Power/ Electrical protections: 10-28 VDC (absolute max. = 30 VDC) • Power limitation = 100 W

Electrical protection: compliant with IEC 61010-1

HOUSING

Dimensions (WxHxD): 257x247x134 mm

Material Enclosure: Polycarbonate

Seal: Polyurethane

Cable glands: Polyamide

Protection rating: IP 65
