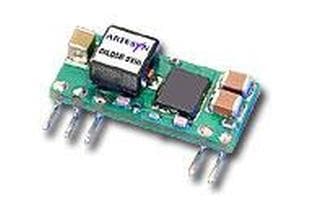

Artesyn SIL05E-05W3V3-HJ 비절연 / PoL 3.0-5.5Vin 3.63V 5A 단일 입력 수평 장착

Width: 10.21 mm (0.402 in)

Height: 7 mm (0.276 in)

Length: 23 mm (0.906 in)

Industry: Industrial

Efficiency: 94 %

Unit Weight: 2.500 g

Output Power: 18.15 W

Mounting Style: Through Hole

Mechanical Style: Non-Isolated / POL

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 3 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 750 mV to 3.63 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
