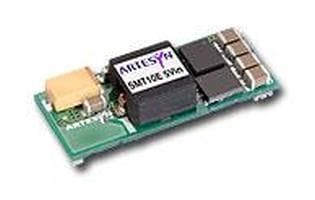

Artesyn SMT10E-05W3V3J 비절연 / PoL 36.3W 0.8-3.63V 10A

Width: 13.46 mm (0.53 in)

Height: 8.21 mm (0.323 in)

Length: 33 mm (1.299 in)

Industry: Industrial

Output Type: Single

Unit Weight: 6.300 g

Output Power: 36.3 W

Mounting Style: SMD/SMT

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 3 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 800 mV to 3.63 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
