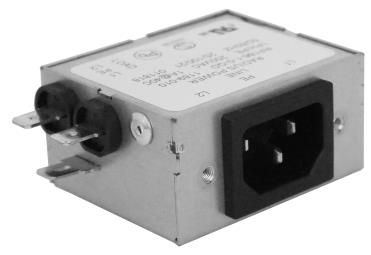

Astrodyne TDI RP186-3-2.2-QD 전원 라인 필터 PWR ENT RCPT C19 PNL HI PERF 3A

Width: 47 mm

Height: 57.2 mm

Length: 57.2 mm

Approvals: UL, CSA, EN

Compliance: cURus, EN60939

Capacitance: 2200 pF

Filter Type: 1-Phase Single-Stage Filter

Current Rating: 3 A

Mounting Style: Chassis Mount

Voltage Rating: 250 VAC

Leakage Current: 400 uA

Termination Style: Quick Connect

Operating Frequency: 50 Hz, 60 Hz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
