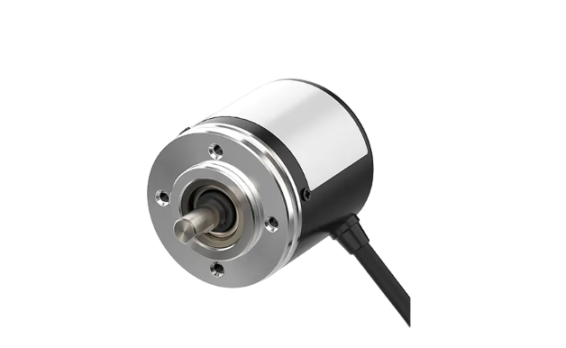

Autonics EPM50S8-1013-B-S-24-S 50mm 멀티턴 절대 회전 인코더(샤프트 타입) (binary code, SSI, 12-24VDC, Ø8mm)

Shaft outer diameter : Ø8mm

Max. allowable revolution : 3000rpm

Starting torque : Max. 70gf.cm(max. 0.0069N.m)

Resolution : Single-Turn: 1024-division, Multi-Turn: 8192-revolution

Output code : Binary Code

Control output : SSI(synchronous serial interface)

Power supply : 12-24VDC  ±5%(ripple P-P: max. 5%)

Connection type : Radial cable type

Protection structure : IP64
